WM092,BK

Active

Serpac

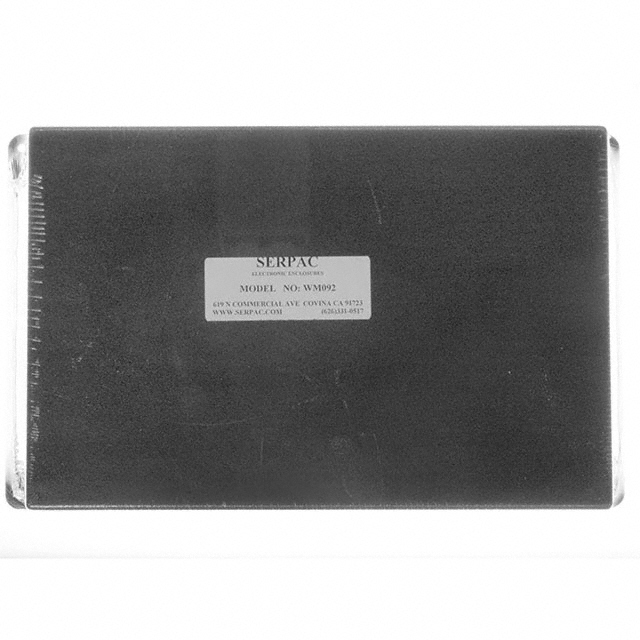

BOX ABS BLACK 9.5"L X 6.34"W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WM092,BK

Active

Serpac

BOX ABS BLACK 9.5"L X 6.34"W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WM092,BK

Area (L x W)	60.2 in²
Area (L x W)	388 cm²
Color	Black
Container Type	Box
Design	Cover Included
Features	PCB Supports, Wall Mount, Mounting Flange
Height [z]	40.64 mm
Height [z]	1.6 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension	161.04 mm, 241.3 mm
Size / Dimension [x]	9.5 "
Size / Dimension [y]	6.34 "
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.574 lb
Weight	260.36 g

WM092 Series

Part	Ratings	Color	Thickness	Thickness	Material Flammability Rating	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension	Design	Material	Container Type	Area (L x W)	Area (L x W)	Weight	Weight	Features	Height [z]	Height [z]
Serpac WM092R,AL	IP40 NEMA 1	Almond	2.54 mm	0.1 in	UL94 HB	9.5 "	6.34 "	161.04 mm 241.3 mm	Cover Included	Plastic ABS	Box	60.2 in²	388 cm²	0.574 lb	260.36 g	Front Access Mounting Flange PCB Supports Wall Mount	40.64 mm	1.6 in
Serpac WM092RI,GY	IP40 NEMA 1	Gray	2.54 mm	0.1 in	UL94 HB	9.5 "	6.34 "	161.04 mm 241.3 mm	Cover Included	Plastic ABS	Box	60.2 in²	388 cm²	0.574 lb	260.36 g	Front Access Mounting Flange PCB Supports Wall Mount	40.64 mm	1.6 in
Serpac WM092RI,AL	IP40 NEMA 1	Almond	2.54 mm	0.1 in	UL94 HB	9.5 "	6.34 "	161.04 mm 241.3 mm	Cover Included	Plastic ABS	Box	60.2 in²	388 cm²	0.574 lb	260.36 g	Front Access Mounting Flange PCB Supports Wall Mount	40.64 mm	1.6 in
Serpac WM092,BK	IP40 NEMA 1	Black	2.54 mm	0.1 in	UL94 HB	9.5 "	6.34 "	161.04 mm 241.3 mm	Cover Included	Plastic ABS	Box	60.2 in²	388 cm²	0.574 lb	260.36 g	Mounting Flange PCB Supports Wall Mount	40.64 mm	1.6 in
Serpac WM092I,GY	IP40 NEMA 1	Gray	2.54 mm	0.1 in	UL94 HB	9.5 "	6.34 "	161.04 mm 241.3 mm	Cover Included	Plastic ABS	Box	60.2 in²	388 cm²	0.574 lb	260.36 g	Mounting Flange PCB Supports Wall Mount	40.64 mm	1.6 in
Serpac WM092RI,BK	IP40 NEMA 1	Black	2.54 mm	0.1 in	UL94 HB	9.5 "	6.34 "	161.04 mm 241.3 mm	Cover Included	Plastic ABS	Box	60.2 in²	388 cm²	0.574 lb	260.36 g	Front Access Mounting Flange PCB Supports Wall Mount	40.64 mm	1.6 in
Serpac WM092,GY	IP40 NEMA 1	Gray	2.54 mm	0.1 in	UL94 HB	9.5 "	6.34 "	161.04 mm 241.3 mm	Cover Included	Plastic ABS	Box	60.2 in²	388 cm²	0.574 lb	260.36 g	Mounting Flange PCB Supports Wall Mount	40.64 mm	1.6 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 15.87
		10	$ 13.17
		25	$ 11.90
		50	$ 11.11
		100	$ 10.32
		250	$ 9.92
		500	$ 9.82

Description

General part information

WM092 Series

Box Plastic, ABS Black Cover Included 9.500" L x 6.340" W (241.30mm x 161.04mm) X 1.600" (40.64mm)
