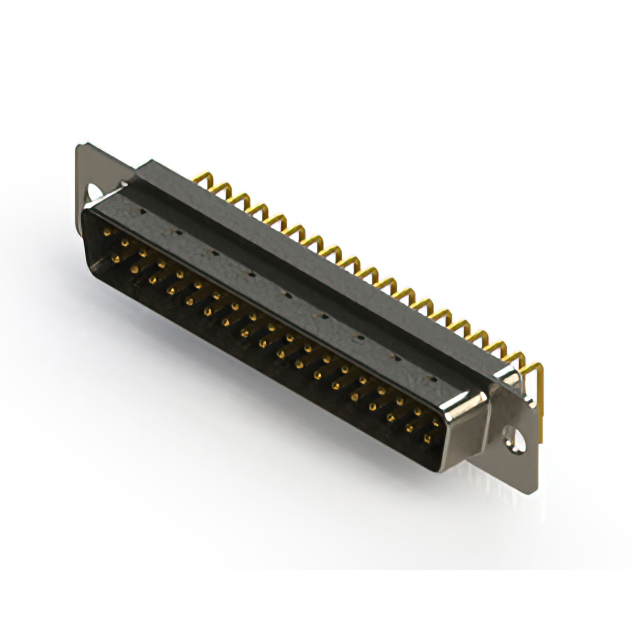

621-M37-660-WN1

Active

EDAC Inc.

621M SERIES RIGHT ANGLE D-SUB PL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

621-M37-660-WN1

Active

EDAC Inc.

621M SERIES RIGHT ANGLE D-SUB PL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	621-M37-660-WN1

Backset Spacing	0.283 in
Backset Spacing	7.2 mm
Color	White
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Grounding Indents, Shielded
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder

621-M37 Series

...

Part	Flange Feature	Number of Rows	Shell Size, Connector Layout	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Backset Spacing	Backset Spacing	Number of Positions	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Connector Style	Contact Finish	Color	Mounting Type	Contact Material	Current Rating (Amps)	Termination	Dielectric Material	Material Flammability Rating	Shell Material, Finish	Contact Finish Thickness
EDAC Inc. 621-M37-360-LN1	Housing/Shell (Unthreaded)	2	4 (DC C)	15 µin	0.38 µm	Male Pins Plug	0.283 in	7.2 mm	37	Grounding Indents Shielded	-55 °C	125 °C	Signal	D-Sub	Gold	Blue	Board Edge Right Angle Through Hole	Copper Alloy	5 A	Solder	Polyamide (PA6T) Nylon 6T	UL94 V-0	Nickel Plated Steel
EDAC Inc. 621-M37-260-BT1	Housing/Shell (Unthreaded)	2	4 (DC C)			Male Pins Plug	0.283 in	7.2 mm	37	Grounding Indents Shielded	-55 °C	125 °C	Signal	D-Sub	Gold	Black	Board Edge Right Angle Through Hole	Copper Alloy	5 A	Solder	Polyamide (PA6T) Nylon 6T	UL94 V-0		Flash
EDAC Inc. 621-M37-660-WN1	Housing/Shell (Unthreaded)	2	4 (DC C)	30 Áin	0.76 Ám	Male Pins Plug	0.283 in	7.2 mm	37	Grounding Indents Shielded	-55 °C	125 °C	Signal	D-Sub	Gold	White	Board Edge Right Angle Through Hole	Copper Alloy	5 A	Solder	Polyamide (PA6T) Nylon 6T	UL94 V-0	Nickel Plated Steel
EDAC Inc. 621-M37-360-WN4	Housing/Shell (4-40)	2	4 (DC C)	15 µin	0.38 µm	Male Pins Plug	0.283 in	7.2 mm	37	Grounding Indents Mounting Brackets Shielded	-55 °C	125 °C	Signal	D-Sub	Gold	White	Board Edge Right Angle Through Hole	Copper Alloy	5 A	Solder	Polyamide (PA6T) Nylon 6T	UL94 V-0	Nickel Plated Steel
EDAC Inc. 621-M37-660-GT5	4-40	2	4 (DC C)	30 Áin	0.76 Ám	Male Pins Plug	0.283 in	7.2 mm	37	Board Lock Grounding Indents Mounting Brackets Shielded	-55 °C	125 °C	Signal	D-Sub	Gold	Green	Board Edge Right Angle Through Hole	Copper Alloy	5 A	Solder	Polyamide (PA6T) Nylon 6T	UL94 V-0
EDAC Inc. 621-M37-660-GT2	Housing/Shell (4-40)	2	4 (DC C)	30 Áin	0.76 Ám	Male Pins Plug	0.283 in	7.2 mm	37	Grounding Indents Shielded	-55 °C	125 °C	Signal	D-Sub	Gold	Green	Board Edge Right Angle Through Hole	Copper Alloy	5 A	Solder	Polyamide (PA6T) Nylon 6T	UL94 V-0
EDAC Inc. 621-M37-360-BN5	4-40	2	4 (DC C)	15 µin	0.38 µm	Male Pins Plug	0.283 in	7.2 mm	37	Board Lock Grounding Indents Mounting Brackets Shielded	-55 °C	125 °C	Signal	D-Sub	Gold	Black	Board Edge Right Angle Through Hole	Copper Alloy	5 A	Solder	Polyamide (PA6T) Nylon 6T	UL94 V-0	Nickel Plated Steel
EDAC Inc. 621-M37-260-LT5	4-40	2	4 (DC C)			Male Pins Plug	0.283 in	7.2 mm	37	Board Lock Grounding Indents Mounting Brackets Shielded	-55 °C	125 °C	Signal	D-Sub	Gold	Blue	Board Edge Right Angle Through Hole	Copper Alloy	5 A	Solder	Polyamide (PA6T) Nylon 6T	UL94 V-0		Flash
EDAC Inc. 621-M37-260-LN3	Housing/Shell (4-40)	2	4 (DC C)			Male Pins Plug	0.283 in	7.2 mm	37	Board Lock Grounding Indents Mounting Brackets Shielded	-55 °C	125 °C	Signal	D-Sub	Gold	Blue	Board Edge Right Angle Through Hole	Copper Alloy	5 A	Solder	Polyamide (PA6T) Nylon 6T	UL94 V-0	Nickel Plated Steel	Flash
EDAC Inc. 621-M37-260-BN1	Housing/Shell (Unthreaded)	2	4 (DC C)			Male Pins Plug	0.283 in	7.2 mm	37	Grounding Indents Shielded	-55 °C	125 °C	Signal	D-Sub	Gold	Black	Board Edge Right Angle Through Hole	Copper Alloy	5 A	Solder	Polyamide (PA6T) Nylon 6T	UL94 V-0	Nickel Plated Steel	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 16.30

Description

General part information

621-M37 Series

37 Position D-Sub Plug, Male Pins Connector
