AAA3MPBZH

Active

Switchcraft Inc.

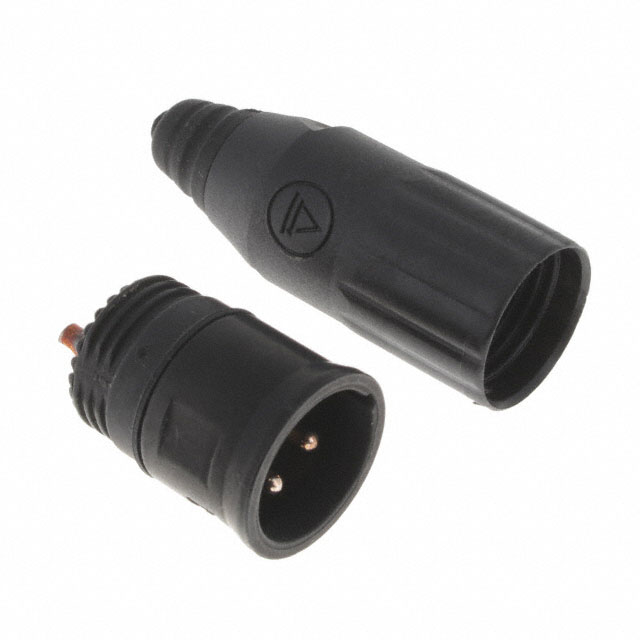

CONN RCPT MALE XLR 3P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

AAA3MPBZH

Active

Switchcraft Inc.

CONN RCPT MALE XLR 3P SOLDER CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 4.77

Description

General part information

AAA3MP Series

3 Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AAA3MPBZH	AAA3MP Series

Applications	Audio, Instrumentation	Audio, Instrumentation, Audio, Industrial, Instrumentation, Medical
Backshell Material, Plating	Chrome, Zinc	Nickel, Zinc Alloy, Chrome, Zinc
Cable Opening	-	2.54 - 5.59 mm
Cable Opening	-	0.1 - 0.22 in
Cable Opening [Max] [diameter]	7.24 mm	7.24 mm
Cable Opening [Max] [diameter]	0.285 in	0.285 in
Cable Opening [Min] [diameter]	0.15 in	0.15 in
Cable Opening [Min] [diameter]	3.81 mm	3.81 mm
Color	Black	Silver, Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Silver	Silver, Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	-	15 A
Fastening Type	Latch Lock	Latch Lock
Features	Backshell, Strain Relief, Ground, Cable Clamp	Backshell, Strain Relief, Ground, Cable Clamp
Ingress Protection	IP66	IP66
Insert Material	Thermoplastic	Thermoplastic
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Nickel, Chrome
Shell Material	Zinc Alloy	Zinc Alloy
Shell Size - Insert	XLR	XLR
Shielding	Shielded	Shielded
Voltage Rating	-	125 VAC

AAA3MP Series

CONN RCPT MALE XLR 3P SOLDER CUP

Part	Connector Type	Mounting Type	Backshell Material, Plating	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Color	Operating Temperature [Max]	Operating Temperature [Min]	Features	Insert Material	Contact Material	Shell Material	Shell Size - Insert	Shell Finish	Contact Finish - Mating	Orientation	Applications	Shielding	Fastening Type	Primary Material	Ingress Protection	Cable Opening [diameter]	Cable Opening [diameter]	Current Rating (Amps)	Voltage Rating
Switchcraft Inc. AAA3MPZH	Male Pins, Receptacle	Free Hanging (In-Line)	Nickel, Zinc Alloy	0.15 in	3.81 mm	7.24 mm	0.285 in	Silver	65 °C	-40 °C	Backshell, Cable Clamp, Ground, Strain Relief	Thermoplastic	Copper Alloy	Zinc Alloy	XLR	Nickel	Silver	Keyed	Audio, Instrumentation	Shielded	Latch Lock	Metal	IP66
Switchcraft Inc. AAA3MPBAUZH	Male Pins, Receptacle	Free Hanging (In-Line)	Chrome, Zinc	0.15 in	3.81 mm	7.24 mm	0.285 in	Black	65 °C	-40 °C	Backshell, Cable Clamp, Ground, Strain Relief	Thermoplastic	Copper Alloy	Zinc Alloy	XLR	Chrome	Gold	Keyed	Audio, Instrumentation	Shielded	Latch Lock	Metal	IP66
Switchcraft Inc. AAA3MPBZ	Male Pins, Receptacle	Free Hanging (In-Line)	Chrome, Zinc					Black			Backshell, Cable Clamp, Ground, Strain Relief	Thermoplastic	Copper Alloy	Zinc Alloy	XLR	Chrome	Silver	Keyed	Audio, Industrial, Instrumentation, Medical	Shielded	Latch Lock	Metal		2.54 mm, 5.59 mm	0.1 in, 0.22 in	15 A	125 VAC
Switchcraft Inc. AAA3MPBZH	Male Pins, Receptacle	Free Hanging (In-Line)	Chrome, Zinc	0.15 in	3.81 mm	7.24 mm	0.285 in	Black	65 °C	-40 °C	Backshell, Cable Clamp, Ground, Strain Relief	Thermoplastic	Copper Alloy	Zinc Alloy	XLR	Chrome	Silver	Keyed	Audio, Instrumentation	Shielded	Latch Lock	Metal	IP66
