56DN06B02ELEMXPSA1
Active600 V, 11KA WELDING DIODE DISC WITH A DIAMETER OF 56 MM
Deep-Dive with AI
Search across all available documentation for this part.

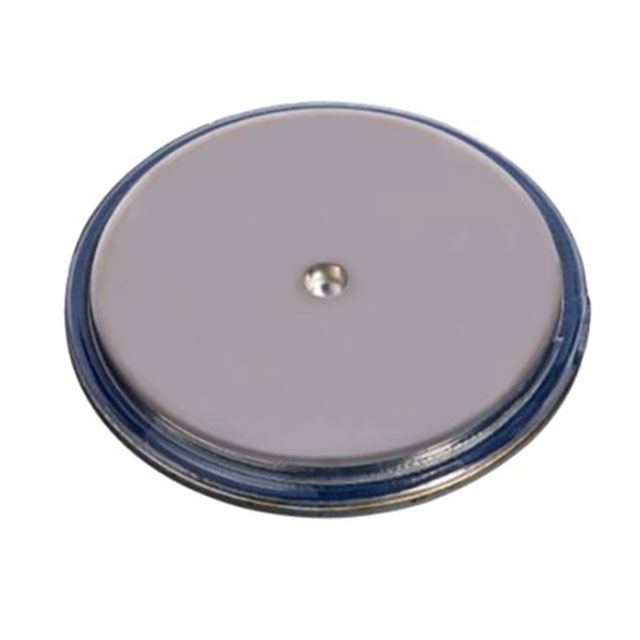

56DN06B02ELEMXPSA1
Active600 V, 11KA WELDING DIODE DISC WITH A DIAMETER OF 56 MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 56DN06B02ELEMXPSA1 |
|---|---|
| Current - Average Rectified (Io) | 11140 A |
| Current - Reverse Leakage @ Vr | 60 mA |
| Mounting Type | Clamp On |
| Operating Temperature - Junction | 180 °C |
| Package / Case | B-PUK, DO-200AB |
| Speed | Standard Recovery >500ns |
| Speed | 200 mA |
| Supplier Device Package | E-EUPEC-0 |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 600 V |
| Voltage - Forward (Vf) (Max) @ If [Max] | 940 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
56DN06 Series
Housingless Welding Diode600 V, 10.3 kA*/ 11.6 kA** with a diameter of 56 mm. We designed this new welding diode with improved losses for medium frequency resistance welding and high current rectifier applications. The low on-state voltage allows very high forward current of around 10.3 kA continuously which is 15% more than our current type 56DN06B01. The 56DN06B02 is mechanically compatible to 56DN06B01 and very compact with a diameter of 56 mm and a height of 5 mm. *IFAV@ Tc= 100°C**IFAV@ Tc= 85°C
