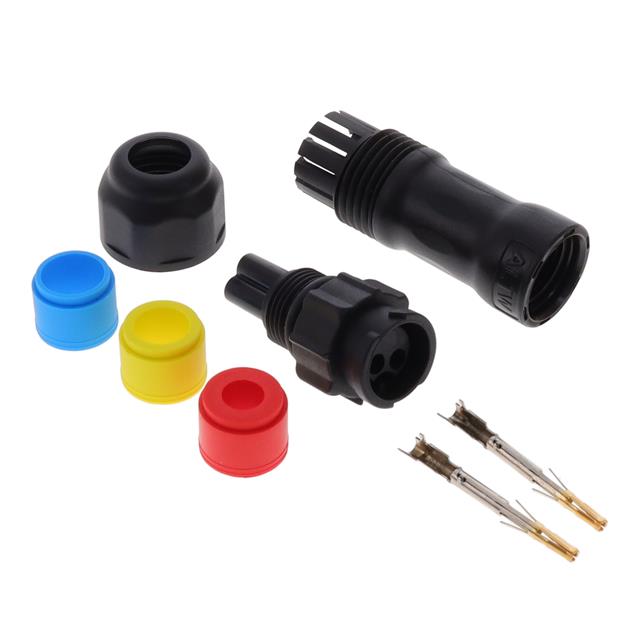

BB-02BMFA-QL8APP

Active

Amphenol LTW

X-LOK, STANDARD SIZE, 10A, 02 PI

Deep-Dive with AI

Search across all available documentation for this part.

BB-02BMFA-QL8APP

Active

Amphenol LTW

X-LOK, STANDARD SIZE, 10A, 02 PI

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BB-02BMFA-QL8APP

Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Features	Strain Relief, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded
Termination	Crimp
Voltage Rating	300 VAC

BB-02BMFA Series

Part	Shell Material	Mounting Type	Fastening Type	Primary Material	Insert Material	Voltage Rating	Shielding	Number of Positions	Current Rating (Amps)	Connector Type	Orientation	Shell Size - Insert	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Material	Color	Ingress Protection	Contact Finish - Mating	Features	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Note	Contact Type	Contact Shape	Housing Color	Type	Shell Size, MIL
Amphenol LTW BB-02BMFA-QL8APP	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Push-Pull	Plastic	Polyamide (PA) Nylon Glass Filled	300 VAC	Unshielded	2	10 A	Female Sockets Plug	Keyed	B	UL94 V-0	-40 °C	105 ░C	Crimp	Copper Alloy	Black	IP68 - Dust Tight Waterproof	Gold	Backshell Strain Relief
Amphenol LTW BB-02BMFA-QL8LPP	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Push-Pull	Plastic	Polyamide (PA) Nylon Glass Filled	300 VAC	Unshielded	2	10 A	Female Sockets Plug	Keyed	B	UL94 V-0	-40 °C	105 ░C	Crimp	Copper Alloy	Black	IP68 - Dust Tight Waterproof	Gold	Backshell	0.394 in	8 mm	10 mm	0.315 in
Amphenol LTW BB-02BMFA-QL8LNP		Free Hanging (In-Line)	Push-Pull	Plastic	Thermoplastic		Unshielded	2		Plug Housing	Keyed	B		-40 °C	105 ░C				IP68 - Dust Tight Waterproof		Backshell					Contacts Not Included	Crimp	Circular	Black	For Female Sockets
Amphenol LTW BB-02BMFA-QL8SNP		Free Hanging (In-Line)	Push-Pull	Plastic	Thermoplastic		Unshielded	2		Plug Housing	Keyed	B		-40 °C	105 ░C				IP68 - Dust Tight Waterproof		Backshell					Contacts Not Included	Crimp	Circular	Black	For Female Sockets	B
Amphenol LTW BB-02BMFA-QL8SPP	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Push-Pull	Plastic	Polyamide (PA) Nylon Glass Filled	300 VAC	Unshielded	2	10 A	Female Sockets Plug	Keyed	B	UL94 V-0	-40 °C	105 ░C	Crimp	Copper Alloy	Black	IP68 - Dust Tight Waterproof	Gold	Backshell	0.236 in	5 mm	6 mm	0.197 in
Amphenol LTW BB-02BMFA-QL8MNP		Free Hanging (In-Line)	Push-Pull	Plastic	Thermoplastic		Unshielded	2		Plug Housing	Keyed	B		-40 °C	105 ░C				IP68 - Dust Tight Waterproof		Backshell					Contacts Not Included	Crimp	Circular	Black	For Female Sockets
Amphenol LTW BB-02BMFA-QL8ANP		Free Hanging (In-Line)	Push-Pull	Plastic	Thermoplastic		Unshielded	2		Plug Housing	Keyed	B		-40 °C	105 ░C				IP68 - Dust Tight Waterproof		Backshell					Contacts Not Included	Crimp	Circular	Black	For Female Sockets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.13
		10	$ 6.44
		100	$ 5.64
		1000	$ 4.16

Description

General part information

BB-02BMFA Series

2 (Power) Position Circular Connector Plug, Female Sockets Crimp

Documents

Technical documentation and resources

No documents available
