M39029/32-259

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR CONTACT, MIL-C-26482 SERIES I, SOCKET, CRIMP, 20 AWG, 24 AWG

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M39029/32-259

Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Contact Size	20
Contact Termination	Crimp
Contact Type	Socket
Grade	Military
Qualification	MIL-C-39029
Type	Power, Machined
Wire Gauge or Range - AWG [Max]	24 AWG
Wire Gauge or Range - AWG [Min]	20 AWG

M3902 Series

Part	Grade	Contact Termination	Contact Finish Thickness	Contact Finish Thickness	Qualification	Contact Material	Type	Contact Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Size	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]
ITT Cannon, LLC M39029/57-359	Military	Crimp	50 µin	1.27 µm	MIL-C-39029	Copper Alloy	Machined Signal	Socket	12 AWG	14 AWG	12	Gold
ITT Cannon, LLC M39029/32-259	Military	Crimp	50 µin	1.27 µm	MIL-C-39029	Copper Alloy	Power Machined	Socket	20 AWG	24 AWG	20	Gold
ITT Cannon, LLC M39029/64-369	Military	Crimp	50 µin	1.27 µm	MIL-C-39029	Copper Alloy	Signal	Male Pin			20	Gold	20 AWG	24 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.67
		10	$ 0.65
		25	$ 0.63
		50	$ 0.61
		100	$ 0.59
		250	$ 0.57
		500	$ 0.56
		1000	$ 0.54
		1500	$ 0.54
	Bulk	1	$ 1.25
		100	$ 0.74
Newark	Each	1	$ 100.62
		5	$ 98.75
		10	$ 97.29
		1000	$ 1.26

Description

General part information

M3902 Series

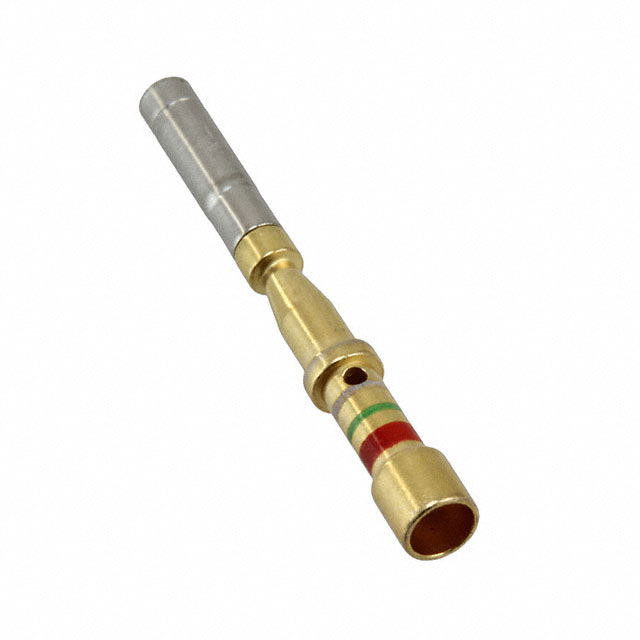

The M39029/32-259 is a circular Connector Contact made of copper. The 000628940 20-size Socket contact features crimp termination and accepts 24 to 20AWG wire. Suitable to use with MIL-C-26482 series I 26500 and 26518 connectors.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
