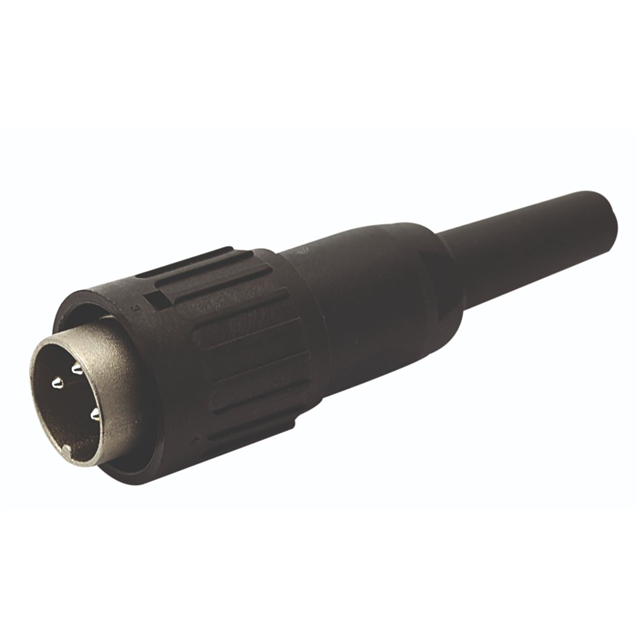

T 3434 551

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG MALE 7POS INLINE

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG MALE 7POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	T 3434 551

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Cable Clamp, Strain Relief, Coupling Nut
Housing Color	Black, Silver
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	7
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-7
Shielding	Unshielded
Type	For Male Pins

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Primary Material	Contact Finish - Mating	Color	Voltage Rating	Shell Size - Insert	Features	Current Rating (Amps)	Connector Type	Shell Finish	Fastening Type	Orientation	Ingress Protection	Shell Material	Number of Positions	Contact Size	Material Flammability Rating	Contact Type	Note	Housing Color	Insert Material	Type	Shielding	Contact Shape
Amphenol Tuchel Industrial T 3434 501	100 °C	-40 °C	Free Hanging (In-Line)	Metal	Silver	Silver	250 VDC	M16-7	Strain Relief	7 A	Male Pins Plug	Nickel	Bayonet Lock	Keyed	IP40	Die Cast	7
Amphenol Tuchel Industrial T 3434 551	100 °C	-40 °C	Free Hanging (In-Line)					M16-7	Cable Clamp Coupling Nut Strain Relief		Plug Housing	Nickel	Bayonet Lock	Keyed	IP40	Die Cast	7	1.5 mm	UL94 V-0	Crimp	Contacts Not Included	Black Silver	Thermoplastic	For Male Pins	Unshielded	Circular
Amphenol Tuchel Industrial T 3434 502	100 °C	-40 °C	Free Hanging (In-Line)	Metal	Silver	Silver	250 VDC	M16-7	Cable Clamp Strain Relief	7 A	Male Pins Plug	Nickel	Bayonet Lock	Keyed	IP40	Die Cast	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 4.62

General part information

7 Position Circular Connector Plug Housing Free Hanging (In-Line) Cable Clamp, Coupling Nut, Strain Relief
