18282-3SG-318

Active

Conxall/Switchcraft

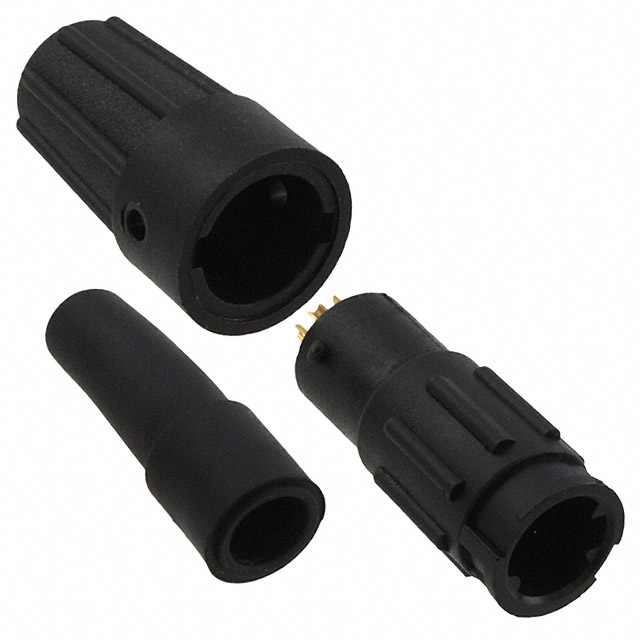

CONN RCPT FMALE 3P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 3P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	18282-3SG-318

Applications	Medical, Data, Instrumentation, Industrial
Backshell Material, Plating	Thermoplastic
Cable Opening [Max] [custom]	0.2 in
Cable Opening [Max] [custom]	5.08 mm
Cable Opening [Min] [custom]	4.57 mm
Cable Opening [Min] [custom]	0.18 in
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 VAC

CONN RCPT FMALE 3P GOLD SLDR CUP

Part	Backshell Material, Plating	Shielding	Features	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Current Rating (Amps)	Contact Finish - Mating	Mounting Type	Material Flammability Rating	Primary Material	Contact Material	Ingress Protection	Fastening Type	Orientation	Applications	Color	Voltage Rating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]
Conxall/Switchcraft 18282-3SG-318	Thermoplastic	Unshielded	Backshell	4.57 mm	0.18 in	0.2 in	5.08 mm	7.5 A	Gold	Free Hanging (In-Line)	UL94 HB	Plastic	Copper Alloy	IP67 - Dust Tight, Waterproof	Bayonet Lock	Keyed	Data, Industrial, Instrumentation, Medical	Black	600 VAC	Receptacle, Female Sockets	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Female Sockets Solder Cup
