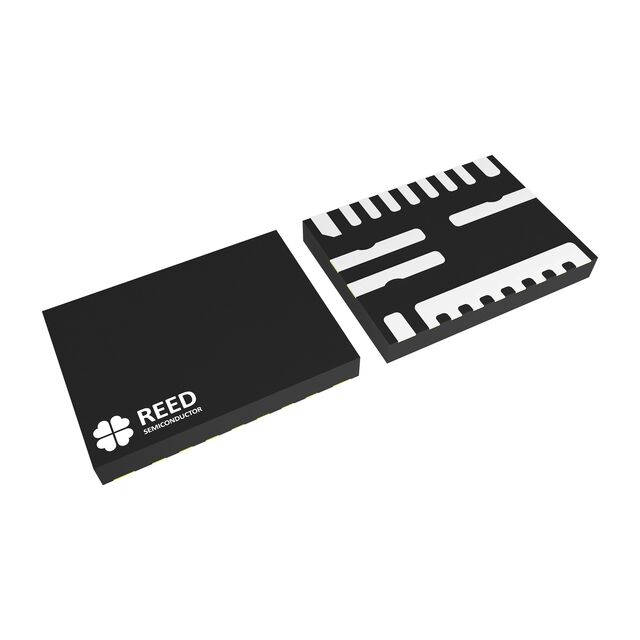

RS53328LR

Active

Reed Semiconductor Corp.

IC REG BUCK ADJ 12A 21QFN

Search across all available documentation for this part.

Active

Reed Semiconductor Corp.

IC REG BUCK ADJ 12A 21QFN

Technical Specifications

Parameters and characteristics commom to parts in this series

IC REG BUCK ADJ 12A 21QFN

Part	Topology	Frequency - Switching [Max]	Frequency - Switching	Frequency - Switching [Min]	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Input (Min) [Min]	Output Configuration	Mounting Type	Supplier Device Package	Current - Output	Package / Case	Function	Output Type	Voltage - Output (Max) [Max]	Voltage - Output (Min/Fixed)	Synchronous Rectifier
Reed Semiconductor Corp. RS53328LR	Buck	2.2MHz	600kHz, 800kHz	1MHz	16 V	1	2.85 V	Positive	Surface Mount	21-QFN (3x4)	12 A	21-QFN	Step-Down	Adjustable	5.5 V	0.6 V
Reed Semiconductor Corp. RS53328HR	Buck	2.2MHz	600kHz, 800kHz	1MHz	16 V	1	2.85 V	Positive	Surface Mount	21-QFN (3x4)	12 A	21-QFN	Step-Down	Adjustable	5.5 V	0.9 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 12A 21-QFN
