M80-4E10642F1

Active

Harwin Inc.

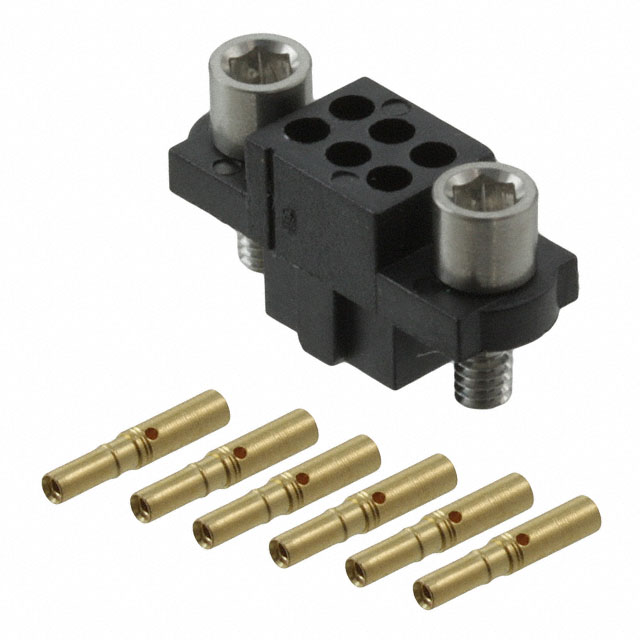

3+3 POS. FEMALE DIL 28-32AWG CABLE CONN. KIT, JACKSCREWS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80-001 M80, M83 Series Spec Sheet +2

M80-4E10642F1

Active

Harwin Inc.

3+3 POS. FEMALE DIL 28-32AWG CABLE CONN. KIT, JACKSCREWS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM80-001 M80, M83 Series Spec Sheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-4E10642F1

Cable Termination	Crimp
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.3 Ám
Contact Finish Thickness	11.8 Áin
Contact Type	Female Socket
Features	Jackscrews
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Wire Gauge [Max]	32 AWG
Wire Gauge [Min]	27.5 AWG
Wire Type	Discrete

M80-4E1 Series

Part	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Color	Pitch [x]	Pitch [x]	Connector Type	Row Spacing	Row Spacing	Wire Type	Cable Termination	Number of Rows	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Features	Number of Positions	Number of Positions
Harwin Inc. M80-4E11042F2	Female Socket	0.3 Ám	11.8 Áin	Gold	Black	0.079 in	2 mm	Receptacle	2 mm	0.079 in	Discrete	Crimp	2	32 AWG	27.5 AWG	Free Hanging (In-Line)	Jackscrews	10
Harwin Inc. M80-4E10642F2	Female Socket	0.3 Ám	11.8 Áin	Gold	Black	0.079 in	2 mm	Receptacle	2 mm	0.079 in	Discrete	Crimp	2	32 AWG	27.5 AWG	Free Hanging (In-Line)	Jackscrews	6
Harwin Inc. M80-4E10605F2	Female Socket	0.3 Ám	11.8 Áin	Gold	Black	0.079 in	2 mm	Receptacle	2 mm	0.079 in	Discrete	Crimp	2	32 AWG	27.5 AWG	Free Hanging (In-Line)	Jackscrews	6
Harwin Inc. M80-4E11405F1	Female Socket	0.3 Ám	11.8 Áin	Gold	Black	0.079 in	2 mm	Receptacle	2 mm	0.079 in	Discrete	Crimp	2	32 AWG	27.5 AWG	Free Hanging (In-Line)	Jackscrews	14
Harwin Inc. M80-4E14205F1	Female Socket	0.3 Ám	11.8 Áin	Gold	Black	0.079 in	2 mm	Receptacle	2 mm	0.079 in	Discrete	Crimp	2	32 AWG	27.5 AWG	Free Hanging (In-Line)	Jackscrews	42
Harwin Inc. M80-4E15042F1	Female Socket	0.3 Ám	11.8 Áin	Gold	Black	0.079 in	2 mm	Receptacle	2 mm	0.079 in	Discrete	Crimp	2	32 AWG	27.5 AWG	Free Hanging (In-Line)	Jackscrews	50
Harwin Inc. M80-4E11205F1	Female Socket	0.3 Ám	11.8 Áin	Gold	Black	0.079 in	2 mm	Receptacle	2 mm	0.079 in	Discrete	Crimp	2	32 AWG	27.5 AWG	Free Hanging (In-Line)	Jackscrews	12
Harwin Inc. M80-4E10642F1	Female Socket	0.3 Ám	11.8 Áin	Gold	Black	0.079 in	2 mm	Receptacle	2 mm	0.079 in	Discrete	Crimp	2	32 AWG	27.5 AWG	Free Hanging (In-Line)	Jackscrews	6
Harwin Inc. M80-4E11642F2	Female Socket	0.3 Ám	11.8 Áin	Gold	Black	0.079 in	2 mm	Receptacle	2 mm	0.079 in	Discrete	Crimp	2	32 AWG	27.5 AWG	Free Hanging (In-Line)	Jackscrews		16
Harwin Inc. M80-4E10605F1	Female Socket	0.3 Ám	11.8 Áin	Gold	Black	0.079 in	2 mm	Receptacle	2 mm	0.079 in	Discrete	Crimp	2	32 AWG	27.5 AWG	Free Hanging (In-Line)	Jackscrews	6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 10.74
Newark	Each	10	$ 13.59
		50	$ 11.70
		100	$ 11.40
		250	$ 10.22
		500	$ 9.63
		1000	$ 8.45
		2500	$ 8.03

Description

General part information

M80-4E1 Series

6 Position Rectangular Receptacle Connector Crimp Gold 28-32 AWG
