2-1393641-7

Active

TE Connectivity AMP Connectors

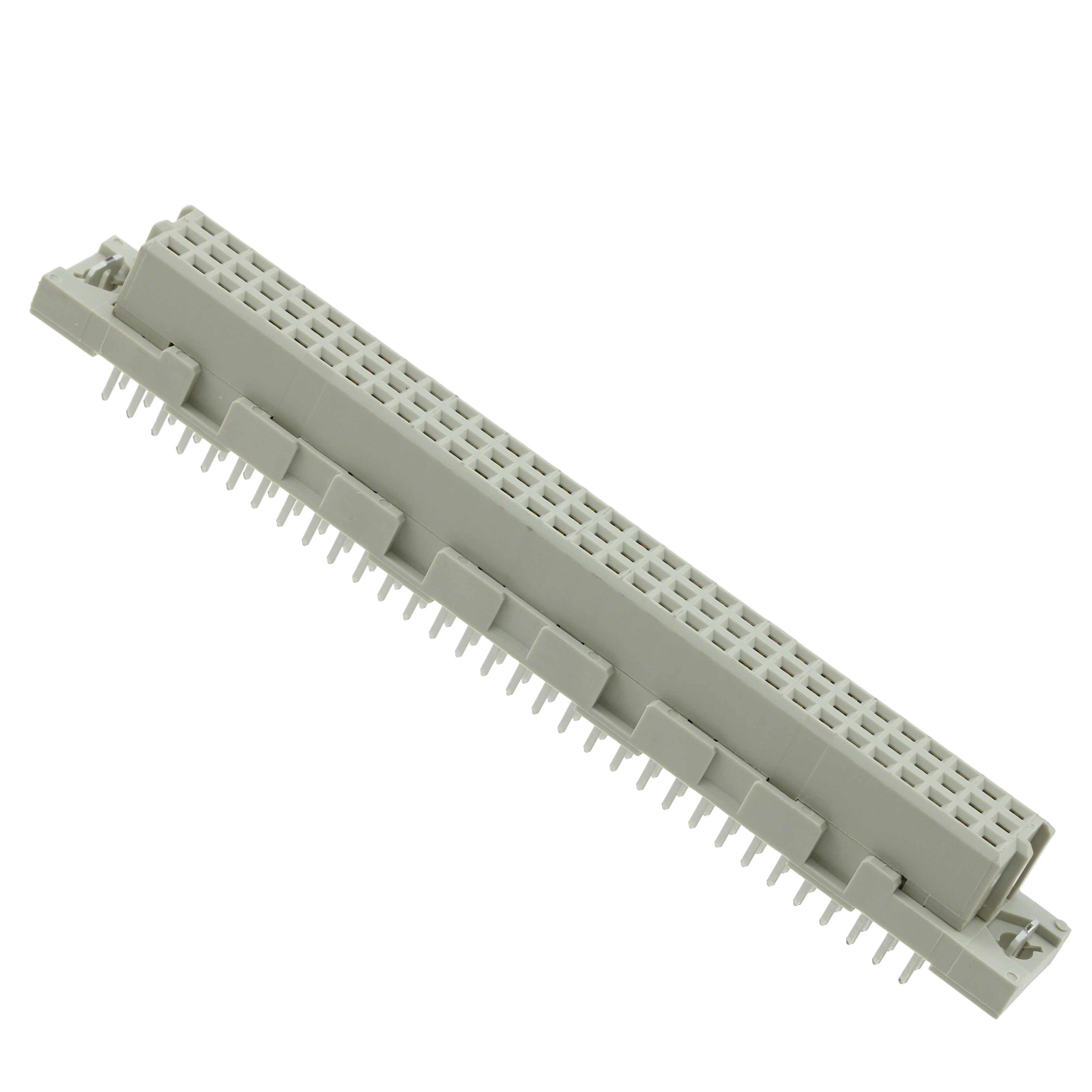

CONN DIN RCPT 96POS PCB GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2-1393641-7

Active

TE Connectivity AMP Connectors

CONN DIN RCPT 96POS PCB GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1393641 Series

96 Position Din Connector Receptacle, Female Sockets Gold or Gold-Palladium Through Hole

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-1393641-7	1393641 Series

Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold, Gold-Palladium	Gold, Gold-Palladium
Level, Class	-	1
Material - Insulation	Glass Filled, Polyester, Polybutylene Terephthalate (PBT)	Glass Filled, Polyester, Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	96	4 - 96
Number of Positions Loaded	All	All
Number of Positions Loaded	-	12 - 64
Number of Rows	3	2 - 3
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Style	C	C, B, M
Termination	Solder	Solder

1393641 Series

CONN DIN RCPT 96POS PCB GOLD

Part	Material Flammability Rating	Pitch [x]	Pitch [x]	Mounting Type	Number of Rows	Contact Finish	Number of Positions Loaded	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Positions	Style	Material - Insulation	Number of Positions Loaded	Level, Class
TE Connectivity AMP Connectors 2-1393641-7	UL94 V-0	2.54 mm	0.1 in	Through Hole	3	Gold, Gold-Palladium	All	Receptacle, Female Sockets	-55 °C	125 °C	Solder	96	C	Glass Filled, Polybutylene Terephthalate (PBT), Polyester
TE Connectivity AMP Connectors 3-1393641-1	UL94 V-0	2.54 mm	0.1 in	Through Hole	3	Gold, Gold-Palladium	All	Receptacle, Female Sockets	-55 °C	125 °C	Solder	96	C	Glass Filled, Polybutylene Terephthalate (PBT), Polyester
TE Connectivity AMP Connectors 1-1393641-1	UL94 V-0	2.54 mm	0.1 in	Through Hole	2	Gold, Gold-Palladium	All	Receptacle, Female Sockets	-55 °C	125 °C	Solder		B	Glass Filled, Polybutylene Terephthalate (PBT), Polyester
TE Connectivity AMP Connectors 3-1393641-5	UL94 V-0	2.54 mm	0.1 in	Through Hole	3	Gold, Gold-Palladium		Receptacle, Female Sockets	-55 °C	125 °C	Solder	96	C	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	64
TE Connectivity AMP Connectors 6-1393641-3	UL94 V-0	2.54 mm	0.1 in	Through Hole	3	Gold, Gold-Palladium		Receptacle, Female Sockets	-55 °C	125 °C	Solder	4, 60	M	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	12	1
TE Connectivity AMP Connectors 3-1393641-7	UL94 V-0	2.54 mm	0.1 in	Through Hole	3	Gold, Gold-Palladium	All	Receptacle, Female Sockets	-55 °C	125 °C	Solder	96	C	Glass Filled, Polybutylene Terephthalate (PBT), Polyester
