3-1393641-1

Active

TE Connectivity AMP Connectors

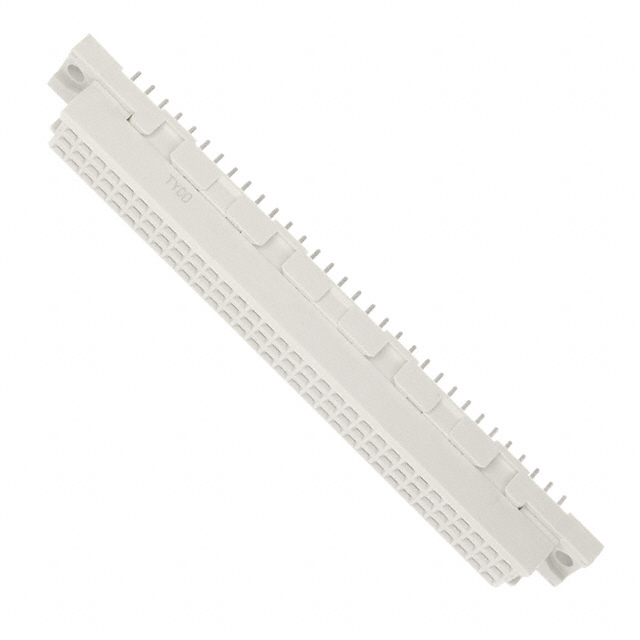

CONN DIN RCPT 96POS PCB GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3-1393641-1	1393641 Series

Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold, Gold-Palladium	Gold, Gold-Palladium
Level, Class	-	1
Material - Insulation	Glass Filled, Polyester, Polybutylene Terephthalate (PBT)	Glass Filled, Polyester, Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	96	4 - 96
Number of Positions Loaded	All	All
Number of Positions Loaded	-	12 - 64
Number of Rows	3	2 - 3
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Style	C	C, B, M
Termination	Solder	Solder

1393641 Series

CONN DIN RCPT 96POS PCB GOLD

Part	Material Flammability Rating	Pitch [x]	Pitch [x]	Mounting Type	Number of Rows	Contact Finish	Number of Positions Loaded	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Positions	Style	Material - Insulation	Number of Positions Loaded	Level, Class
TE Connectivity AMP Connectors 2-1393641-7	UL94 V-0	2.54 mm	0.1 in	Through Hole	3	Gold, Gold-Palladium	All	Receptacle, Female Sockets	-55 °C	125 °C	Solder	96	C	Glass Filled, Polybutylene Terephthalate (PBT), Polyester
TE Connectivity AMP Connectors 3-1393641-1	UL94 V-0	2.54 mm	0.1 in	Through Hole	3	Gold, Gold-Palladium	All	Receptacle, Female Sockets	-55 °C	125 °C	Solder	96	C	Glass Filled, Polybutylene Terephthalate (PBT), Polyester
TE Connectivity AMP Connectors 1-1393641-1	UL94 V-0	2.54 mm	0.1 in	Through Hole	2	Gold, Gold-Palladium	All	Receptacle, Female Sockets	-55 °C	125 °C	Solder		B	Glass Filled, Polybutylene Terephthalate (PBT), Polyester
TE Connectivity AMP Connectors 3-1393641-5	UL94 V-0	2.54 mm	0.1 in	Through Hole	3	Gold, Gold-Palladium		Receptacle, Female Sockets	-55 °C	125 °C	Solder	96	C	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	64
TE Connectivity AMP Connectors 6-1393641-3	UL94 V-0	2.54 mm	0.1 in	Through Hole	3	Gold, Gold-Palladium		Receptacle, Female Sockets	-55 °C	125 °C	Solder	4, 60	M	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	12	1
TE Connectivity AMP Connectors 3-1393641-7	UL94 V-0	2.54 mm	0.1 in	Through Hole	3	Gold, Gold-Palladium	All	Receptacle, Female Sockets	-55 °C	125 °C	Solder	96	C	Glass Filled, Polybutylene Terephthalate (PBT), Polyester

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.22
		10	$ 6.81
		25	$ 6.32
		50	$ 5.97
		100	$ 5.64
		250	$ 5.24

Description

General part information

1393641 Series

96 Position Din Connector Receptacle, Female Sockets Gold or Gold-Palladium Through Hole
