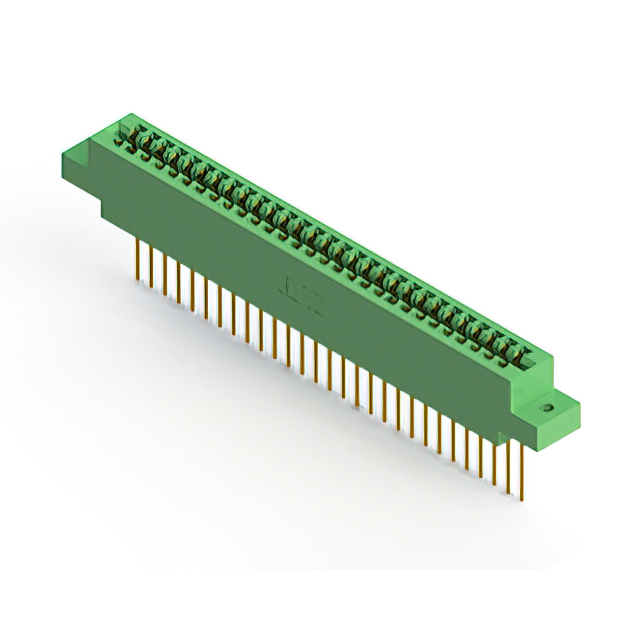

317-029-541-602
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 58POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
317-029-541-602
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 58POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 317-029-541-602 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 58 |
| Number of Positions/Bay/Row | 29 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Wire Wrap |
317-029 Series
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Mounting Type | Read Out | Operating Temperature [Max] | Operating Temperature [Min] | Material - Insulation | Gender | Contact Material | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Positions/Bay/Row | Color | Card Type | Number of Positions | Contact Finish | Number of Rows | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Cantilever | Through Hole | Single | 125 °C | -65 ░C | Diallyl Phthalate (DAP) | Female | Copper Alloy | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | 29 | Green | Non Specified - Dual Edge | 58 | Gold | 2 | Wire Wrap |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Cantilever | Through Hole | Single | 125 °C | -65 ░C | Diallyl Phthalate (DAP) | Female | Copper Alloy | 29 | Green | Non Specified - Dual Edge | 58 | Gold | 2 | Wire Wrap | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Cantilever | Through Hole | Single | 125 °C | -65 ░C | Diallyl Phthalate (DAP) | Female | Copper Alloy | 29 | Green | Non Specified - Dual Edge | 58 | Gold | 2 | Wire Wrap | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Cantilever | Through Hole | Single | 125 °C | -65 ░C | Diallyl Phthalate (DAP) | Female | Copper Alloy | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 29 | Green | Non Specified - Dual Edge | 58 | Gold | 2 | Wire Wrap |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Cantilever | Through Hole | Single | 125 °C | -65 ░C | Diallyl Phthalate (DAP) | Female | Copper Alloy | M3 Threaded Insert Top Mount Opening | 29 | Green | Non Specified - Dual Edge | 58 | Gold | 2 | Wire Wrap |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 74.51 | |
Description
General part information
317-029 Series
58 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
