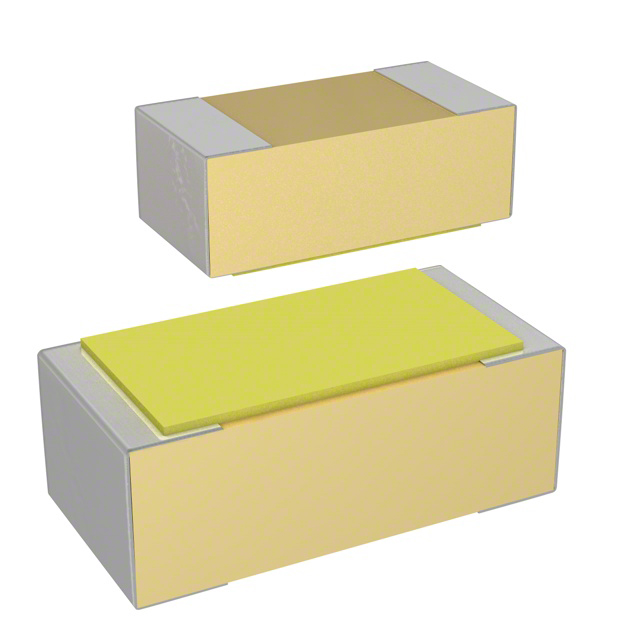

"USF 0603, 3.5 A, 32 VDC, 32 VAC, SUPER-QUICK-ACTING FF, BLISTER TAPE 33 CM REEL PCS., FUSE, SMT, 1.6 X 0.8 MM\/
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 3412.0122.26 |
|---|---|
| Breaking Capacity @ Rated Voltage | 50 A |
| Current Rating (Amps) | 3.5 A |
| DC Cold Resistance | 16 mOhms |
| Fuse Type | Board Mount |
| Melting I²t | 0.8 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Response Time | Fast Blow |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [x] | 0.063 in |
| Size / Dimension [y] | 0.031 in |
| Size / Dimension [y] | 0.8 mm |
| Size / Dimension [z] | 0.024 " |
| Size / Dimension [z] | 0.6 mm |
| Voltage Rating - AC | 32 V |
| Voltage Rating - DC | 63 VDC |
"USF 0603, 3.5 A, 32 VDC, 32 VAC, SUPER-QUICK-ACTING FF, BLISTER TAPE 33 CM REEL PCS., FUSE, SMT, 1.6 X 0.8 MM\/
| Part | Fuse Type | Response Time | Operating Temperature [Max] | Operating Temperature [Min] | Melting I²t | Breaking Capacity @ Rated Voltage | Voltage Rating - AC | DC Cold Resistance | Package / Case | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Voltage Rating - DC | Current Rating (Amps) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 3412.0122.26 | Board Mount | Fast Blow | 90 °C | -55 °C | 0.8 | 50 A | 32 V | 16 mOhms | 0603 (1608 Metric) | 0.024 " | 0.031 in | 1.6 mm | 0.6 mm | 0.063 in | 0.8 mm | 63 VDC | 3.5 A | Surface Mount |
