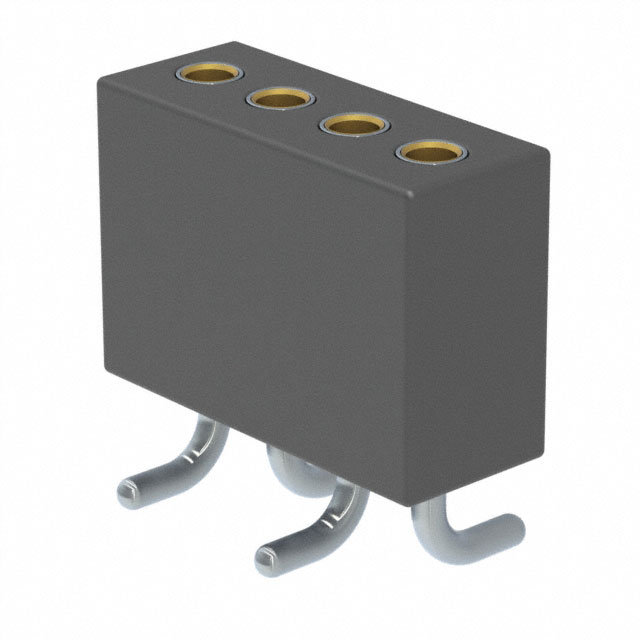

851-43-004-30-001000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 4POS 0.05 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

851-43-004-30-001000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 4POS 0.05 GOLD SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	851-43-004-30-001000

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.207 in
Insulation Height	5.25 mm
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Termination	Solder

851-43 Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Connector Type	Termination	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Mounting Type	Fastening Type	Insulation Material	Insulation Color	Contact Shape	Contact Material	Contact Type	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Material Flammability Rating	Contact Length - Post	Number of Positions	Contact Length - Post [x]
Mill-Max Manufacturing Corp. 851-43-042-10-001000	-55 °C	125 °C	42	All	0.05 in	1.27 mm	Receptacle	Solder	3 A	0.161 in	4.1 mm	30 Áin	0.76 Ám	1	Through Hole	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Circular	Beryllium Copper	Female Socket	Gold	200 µin	5.08 µm	0.099 in	2.51 mm	Tin	UL94 V-0
Mill-Max Manufacturing Corp. 851-43-002-10-002000	-55 °C	125 °C	2	All	0.05 in	1.27 mm	Receptacle	Solder	3 A	0.185 in	4.7 mm	30 Áin	0.76 Ám	1	Through Hole	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Circular	Beryllium Copper	Female Socket	Gold	200 µin	5.08 µm	2.92 mm		Tin	UL94 V-0	0.115 in
Mill-Max Manufacturing Corp. 851-43-004-30-001000	-55 °C	125 °C	4	All	0.05 in	1.27 mm	Receptacle	Solder	3 A	0.207 in	5.25 mm	30 Áin	0.76 Ám	1	Surface Mount	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Circular	Beryllium Copper	Female Socket	Gold	200 µin	5.08 µm			Tin	UL94 V-0
Mill-Max Manufacturing Corp. 851-43-031-10-001000	-55 °C	125 °C	31	All	0.05 in	1.27 mm	Receptacle	Solder	3 A	0.161 in	4.1 mm	30 Áin	0.76 Ám	1	Through Hole	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Circular	Beryllium Copper	Female Socket	Gold	200 µin	5.08 µm	0.099 in	2.51 mm	Tin	UL94 V-0
Mill-Max Manufacturing Corp. 851-43-016-10-001000	-55 °C	125 °C		All	0.05 in	1.27 mm	Receptacle	Solder	3 A	0.161 in	4.1 mm	30 Áin	0.76 Ám	1	Through Hole	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Circular	Beryllium Copper	Female Socket	Gold	200 µin	5.08 µm	0.099 in	2.51 mm	Tin	UL94 V-0		16
Mill-Max Manufacturing Corp. 851-43-002-10-001000	-55 °C	125 °C	2	All	0.05 in	1.27 mm	Receptacle	Solder	3 A	0.161 in	4.1 mm	30 Áin	0.76 Ám	1	Through Hole	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Circular	Beryllium Copper	Female Socket	Gold	200 µin	5.08 µm	0.099 in	2.51 mm	Tin	UL94 V-0
Mill-Max Manufacturing Corp. 851-43-074-10-002000	-55 °C	125 °C	74	All	0.05 in	1.27 mm	Receptacle	Solder	3 A	0.185 in	4.7 mm	30 Áin	0.76 Ám	1	Through Hole	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Circular	Beryllium Copper	Female Socket	Gold	200 µin	5.08 µm	2.92 mm		Tin	UL94 V-0	0.115 in
Mill-Max Manufacturing Corp. 851-43-040-10-001000	-55 °C	125 °C	40	All	0.05 in	1.27 mm	Receptacle	Solder	3 A	0.161 in	4.1 mm	30 Áin	0.76 Ám	1	Through Hole	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Circular	Beryllium Copper	Female Socket	Gold	200 µin	5.08 µm	0.099 in	2.51 mm	Tin	UL94 V-0
Mill-Max Manufacturing Corp. 851-43-024-10-011000			24	All	0.05 in	1.27 mm	Receptacle	Solder		0.161 in	4.1 mm	30 Áin	0.76 Ám	1	Through Hole	Push-Pull	Polyamide (PA46) Nylon 4/6	Black	Circular	Brass Alloy	Female Socket	Gold	200 µin	5.08 µm	4.98 mm		Tin				0.196 in
Mill-Max Manufacturing Corp. 851-43-017-10-002000	-55 °C	125 °C		All	0.05 in	1.27 mm	Receptacle	Solder	3 A	0.185 in	4.7 mm	30 Áin	0.76 Ám	1	Through Hole	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	Circular	Beryllium Copper	Female Socket	Gold	200 µin	5.08 µm	2.92 mm		Tin	UL94 V-0	0.115 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 13.27

Description

General part information

851-43 Series

4 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
