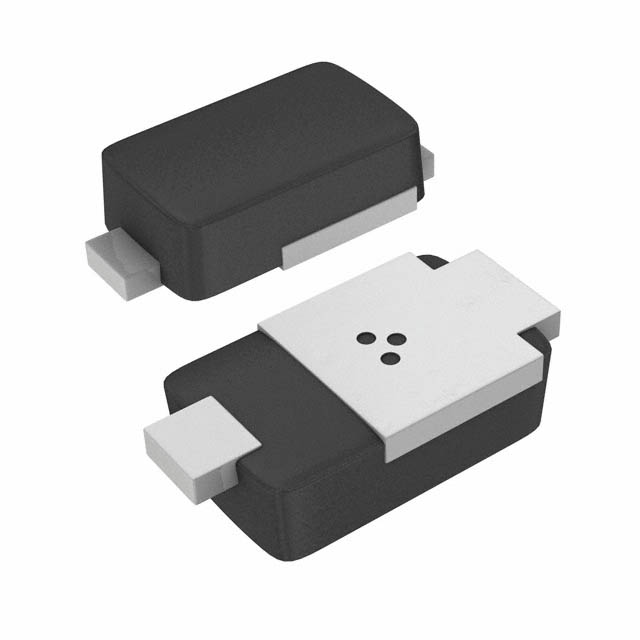

SMM4F18A-TR - DO-220AA SMP

SMM4F18A-TR

Active
STMicroelectronics

DIODE TVS SINGLE UNI-DIR 18V 400W 2-PIN(1+TAB) DO-222AA T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTN1517+15
SMM4F18A-TR - DO-220AA SMP

SMM4F18A-TR

Active
STMicroelectronics

DIODE TVS SINGLE UNI-DIR 18V 400W 2-PIN(1+TAB) DO-222AA T/R

Deep-Dive with AI

DocumentsDatasheetTN1517+15

Technical Specifications

Parameters and characteristics for this part

SpecificationSMM4F18A-TR
ApplicationsGeneral Purpose
Current - Peak Pulse (10/1000µs)59 A
Mounting TypeSurface Mount
Operating Temperature [Max]175 ░C
Operating Temperature [Min]-55 °C
Package / CaseDO-222AA
Power - Peak Pulse400 W
Power Line ProtectionFalse
Supplier Device PackageDO222-AA
TypeZener
Unidirectional Channels [custom]1
Voltage - Breakdown (Min) [Min]20.9 V
Voltage - Clamping (Max) @ Ipp39.3 V
Voltage - Reverse Standoff (Typ)18 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.62
10$ 0.53
100$ 0.37
500$ 0.29
1000$ 0.23
2000$ 0.21
5000$ 0.20
Digi-Reel® 1$ 0.62
10$ 0.53
100$ 0.37
500$ 0.29
1000$ 0.23
2000$ 0.21
5000$ 0.20
Tape & Reel (TR) 12000$ 0.19
24000$ 0.18

Description

General part information

SMM4F18A Series

The SMM4F TVS series are designed to protect sensitive circuits against transient surges.

The planar technology makes it compatible with high-end circuits where low leakage current and high junction temperature are required to provide long term reliability and stability.
