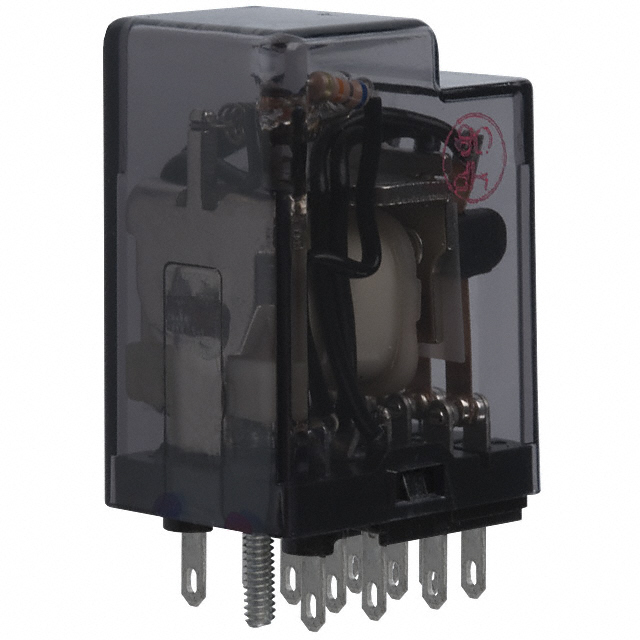

KHAU-17D12N-110

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE 4PDT 5A 110V

Deep-Dive with AI

Search across all available documentation for this part.

KHAU-17D12N-110

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE 4PDT 5A 110V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KHAU-17D12N-110

Approval Agency	CSA, UR
Coil Current	8.2 mA
Coil Insulation	Class B
Coil Resistance	11000 Ohms
Coil Type	Non Latching
Coil Voltage	110 VDC
Contact Form	4PDT (4 Form C)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	5 A
Features	Lighted Indicator
Mounting Type	Socketable
Must Operate Voltage	82.5 VDC
Operate Time	13 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-45 °C
Relay Type	General Purpose
Release Time	6 ms
Switching Voltage	240 VAC
Termination Style	Plug In

KHAU-17D Series

Part	Must Operate Voltage	Coil Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Termination Style	Switching Voltage	Relay Type	Coil Resistance	Coil Voltage	Mounting Type	Operate Time	Coil Insulation	Approval Agency	Coil Current	Contact Rating (Current)	Release Time	Contact Form
TE Connectivity Potter & Brumfield Relays KHAU-17D11M-24	18 VDC	Non Latching	Lighted Indicator Test Button	-45 °C	70 °C	Silver (Ag)	Plug In	240 VAC	General Purpose	690 Ohms	24 VDC	Socketable	13 ms	Class B	CSA UR	37.5 mA	3 A	6 ms	4PDT (4 Form C)
TE Connectivity Potter & Brumfield Relays KHAU-17D12-110	82.5 VDC	Non Latching		-45 °C	70 °C	Silver Cadmium Oxide (AgCdO)	Plug In	240 VAC	General Purpose	11000 Ohms	110 VDC	Socketable	13 ms	Class B	CSA UR	8.2 mA	5 A	6 ms	4PDT (4 Form C)
TE Connectivity Potter & Brumfield Relays KHAU-17D12L-24	18 VDC	Non Latching	Lighted Indicator	-45 °C	70 °C	Silver Cadmium Oxide (AgCdO)	Plug In	240 VAC	General Purpose	690 Ohms	24 VDC	Socketable	13 ms	Class B	CSA UR	37.5 mA	5 A	6 ms	4PDT (4 Form C)
TE Connectivity Potter & Brumfield Relays KHAU-17D18-110	82.5 VDC	Non Latching		-45 °C	70 °C	Silver (Ag)	Plug In	240 VAC	General Purpose	11000 Ohms	110 VDC	Socketable	13 ms	Class B	CSA UR	8.2 mA	3 A	6 ms	4PDT (4 Form C)
TE Connectivity Potter & Brumfield Relays KHAU-17D12L-48	36 VDC	Non Latching	Lighted Indicator	-45 °C	70 °C	Silver Cadmium Oxide (AgCdO)	Plug In	240 VAC	General Purpose	2.6 kOhms	48 VDC	Socketable	13 ms	Class B	CSA UR	18.8 mA	5 A	6 ms	4PDT (4 Form C)
TE Connectivity Potter & Brumfield Relays KHAU-17D12-48	36 VDC	Non Latching		-45 °C	70 °C	Silver Cadmium Oxide (AgCdO)	Plug In	240 VAC	General Purpose	2.6 kOhms	48 VDC	Socketable	13 ms	Class B	CSA UR	18.8 mA	5 A	6 ms	4PDT (4 Form C)
TE Connectivity Potter & Brumfield Relays KHAU-17D12-12	9 VDC	Non Latching		-45 °C	70 °C	Silver Cadmium Oxide (AgCdO)	Plug In	240 VAC	General Purpose	160 Ohms	12 VDC	Socketable	13 ms	Class B	CSA UR	75 mA	5 A	6 ms	4PDT (4 Form C)
TE Connectivity Potter & Brumfield Relays KHAU-17D12M-24	18 VDC	Non Latching	Lighted Indicator Test Button	-45 °C	70 °C	Silver Cadmium Oxide (AgCdO)	Plug In	240 VAC	General Purpose	690 Ohms	24 VDC	Socketable	13 ms	Class B	CSA UR	37.5 mA	5 A	6 ms	4PDT (4 Form C)
TE Connectivity Potter & Brumfield Relays KHAU-17D12N-110	82.5 VDC	Non Latching	Lighted Indicator	-45 °C	70 °C	Silver Cadmium Oxide (AgCdO)	Plug In	240 VAC	General Purpose	11000 Ohms	110 VDC	Socketable	13 ms	Class B	CSA UR	8.2 mA	5 A	6 ms	4PDT (4 Form C)
TE Connectivity Potter & Brumfield Relays KHAU-17D18-48	36 VDC	Non Latching		-45 °C	70 °C	Silver (Ag)	Plug In	240 VAC	General Purpose	2.6 kOhms	48 VDC	Socketable	13 ms	Class B	CSA UR	18.8 mA	3 A	6 ms	4PDT (4 Form C)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 42.79
		10	$ 40.54
		25	$ 39.65

Description

General part information

KHAU-17D Series

General Purpose Relay 4PDT (4 Form C) 110VDC Coil Socketable
