Technical Specifications
Parameters and characteristics for this part
| Specification | RHFLVDS32AK1 |
|---|---|
| Data Rate | 400 Mbps |
| Mounting Type | Surface Mount |
| Number of Drivers/Receivers [custom] | 0 |
| Number of Drivers/Receivers [custom] | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |

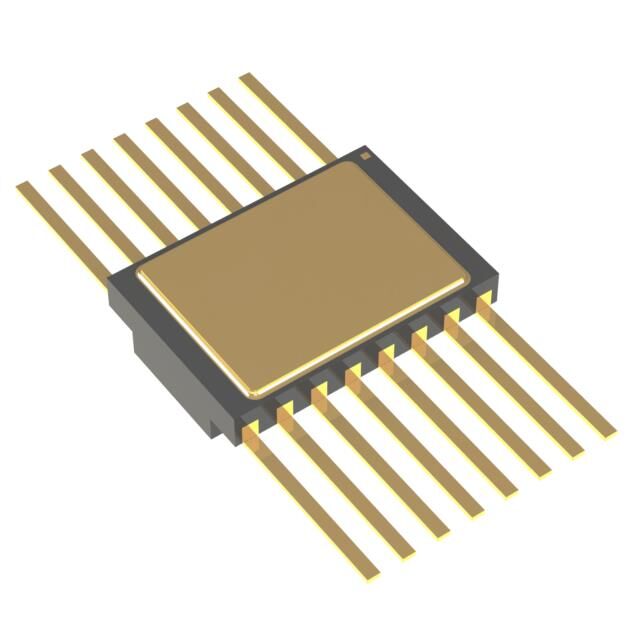

| Package / Case | 16-CFlatPack |
| Protocol | LVDS |
| Supplier Device Package | 16-CFlatPack |
| Type | Receiver |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 872.94 | |
| 10 | $ 859.41 | |||
Description
General part information
RHFLVDS32A Series
The RHFLVDS32A is a quad, low-voltage differential signaling (LVDS) receiver specifically designed, packaged and qualified for use in aerospace environments in a low-power and fast data transmission standard.
The circuit features an internal fail-safe function to ensure a known state in case of an input short circuit or a floating input.
All pins have cold spare buffers to ensure they are in high impedance when VCCis tied to GND.
