Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-PDETECT1 |
|---|---|
| Contents | Board(s) |
| Function | Ambient Light, Infrared (IR), 3D Time-of-Flight (ToF), Color |
| Type | Sensor |
| Utilized IC / Part | STHS34PF80, VL53L8CX, VD6283TX |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information

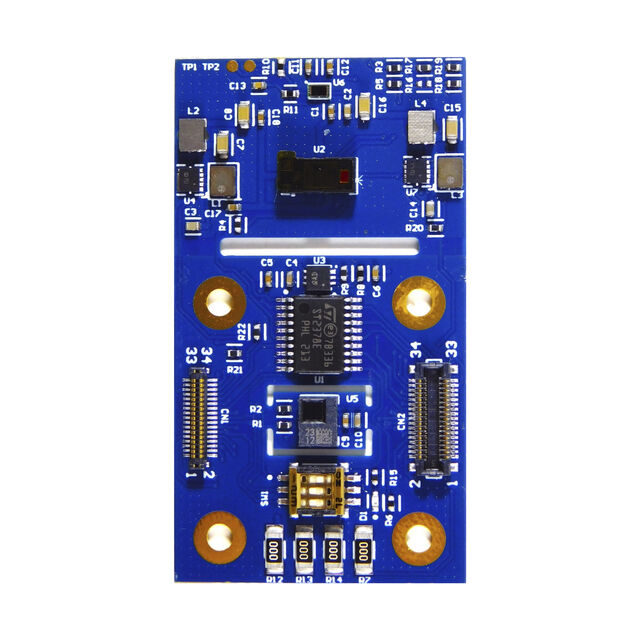

STEVAL-PDETECT1 Series
The STEVAL-PDETECT1 is a presence detection add-on evaluation kit for STWIN.box, targeting human presence applications. It enables low-power applications, user privacy, and it reduces false triggers with multisensor modalities.
It is possible to use simultaneously up to three add-on boards in a daisy-chain configuration.
The kit is based on three sensors: STHS34PF80, VL53L8CX, and VD6283TX.
