PRPC039SBBN-M71RC

Active

Sullins Connector Solutions

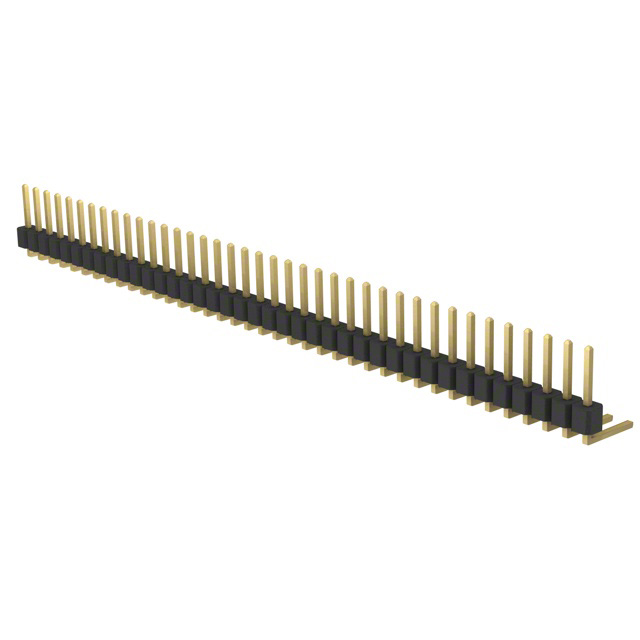

CONN HEADER R/A 39POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PRPC039SBBN-M71RC

Active

Sullins Connector Solutions

CONN HEADER R/A 39POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PRPC039SBBN-M71RC

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	0.22 in
Contact Length - Post	5.58 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	39
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PRPC039 Series

Part	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Mating	Number of Positions Loaded	Insulation Material	Number of Positions	Connector Type	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish - Post	Style	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Number of Rows	Fastening Type	Contact Finish Thickness - Post	Termination	Material Flammability Rating	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Pitch - Mating	Pitch - Mating	Shrouding	Insulation Height [z]	Insulation Height [z]	Contact Type	Insulation Color	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Overall Contact Length	Contact Length - Mating [x]	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height
Sullins Connector Solutions PRPC039DAAN-RC	Brass	0.12 in	3.05 mm	Gold	All	Polybutylene Terephthalate (PBT)	78	Breakaway Header	0.23 in	5.84 mm	Gold	Board to Board Cable	Flash	0.448 in	11.39 mm	2	Push-Pull	Flash	Solder	UL94 V-0	Square	2.54 mm	0.1 in	Through Hole	0.1 in	2.54 mm	Unshrouded	0.098 in	2.5 mm	Male Pin	Black	3 A	-40 °C	105 ░C
Sullins Connector Solutions PRPC039DFAN-RC	Brass	0.12 in	3.05 mm	Gold	All	Polybutylene Terephthalate (PBT)	78	Breakaway Header	0.318 "		Gold	Board to Board Cable	Flash		0.537 "	2	Push-Pull	Flash	Solder	UL94 V-0	Square	2.54 mm	0.1 in	Through Hole	0.1 in	2.54 mm	Unshrouded	0.098 in	2.5 mm	Male Pin	Black	3 A	-40 °C	105 ░C	13.63 mm	8.08 mm
Sullins Connector Solutions PRPC039DFBN-RC	Brass			Gold	All	Polybutylene Terephthalate (PBT)	78	Breakaway Header	0.318 "		Gold	Board to Board Cable	Flash	0.637 in	16.17 mm	2	Push-Pull	Flash	Solder	UL94 V-0	Square	2.54 mm	0.1 in	Through Hole	0.1 in	2.54 mm	Unshrouded	0.098 in	2.5 mm	Male Pin	Black	3 A	-40 °C	105 ░C		8.08 mm	0.22 in	5.58 mm
Sullins Connector Solutions PRPC039SBCN-M71RC	Brass	0.32 in	8.13 mm	Gold	All	Polybutylene Terephthalate (PBT)	39	Breakaway Header	0.23 in	5.84 mm	Gold	Board to Board Cable	Flash			1	Push-Pull	Flash	Solder	UL94 V-0	Square			Through Hole Right Angle	0.1 in	2.54 mm	Unshrouded	0.098 in	2.5 mm	Male Pin	Black	3 A	-40 °C	105 ░C
Sullins Connector Solutions PRPC039SFAN-RC	Brass	0.12 in	3.05 mm	Gold	All	Polybutylene Terephthalate (PBT)	39	Breakaway Header	0.318 "		Gold	Board to Board Cable	Flash		0.537 "	1	Push-Pull	Flash	Solder	UL94 V-0	Square			Through Hole	0.1 in	2.54 mm	Unshrouded	0.098 in	2.5 mm	Male Pin	Black	3 A	-40 °C	105 ░C	13.63 mm	8.08 mm
Sullins Connector Solutions PRPC039DBAN-M71RC	Brass	0.12 in	3.05 mm	Gold	All	Polybutylene Terephthalate (PBT)	78	Breakaway Header	0.23 in	5.84 mm	Gold	Board to Board Cable	Flash			2	Push-Pull	Flash	Solder	UL94 V-0	Square	2.54 mm	0.1 in	Through Hole Right Angle	0.1 in	2.54 mm	Unshrouded			Male Pin	Black	3 A	-40 °C	105 ░C					0.197 in	5 mm
Sullins Connector Solutions PRPC039SAAN-RC	Brass	0.12 in	3.05 mm	Gold	All	Polybutylene Terephthalate (PBT)	39	Breakaway Header	0.23 in	5.84 mm	Gold	Board to Board Cable	Flash	0.448 in	11.39 mm	1	Push-Pull	Flash	Solder	UL94 V-0	Square			Through Hole	0.1 in	2.54 mm	Unshrouded	0.098 in	2.5 mm	Male Pin	Black	3 A	-40 °C	105 ░C
Sullins Connector Solutions PRPC039SADN-RC	Brass	0.42 in	10.67 mm	Gold	All	Polybutylene Terephthalate (PBT)	39	Breakaway Header	0.23 in	5.84 mm	Gold	Board to Board Cable	Flash	0.748 in	19.01 mm	1	Push-Pull	Flash	Solder	UL94 V-0	Square			Through Hole	0.1 in	2.54 mm	Unshrouded	0.098 in	2.5 mm	Male Pin	Black	3 A	-40 °C	105 ░C
Sullins Connector Solutions PRPC039SBBN-M71RC	Brass			Gold	All	Polybutylene Terephthalate (PBT)	39	Breakaway Header	0.23 in	5.84 mm	Gold	Board to Board Cable	Flash			1	Push-Pull	Flash	Solder	UL94 V-0	Square			Through Hole Right Angle	0.1 in	2.54 mm	Unshrouded	0.098 in	2.5 mm	Male Pin	Black	3 A	-40 °C	105 ░C			0.22 in	5.58 mm
Sullins Connector Solutions PRPC039DABN-RC	Brass			Gold	All	Polybutylene Terephthalate (PBT)	78	Breakaway Header	0.23 in	5.84 mm	Gold	Board to Board Cable	Flash	0.558 in	14.18 mm	2	Push-Pull	Flash	Solder	UL94 V-0	Square	2.54 mm	0.1 in	Through Hole	0.1 in	2.54 mm	Unshrouded	0.098 in	2.5 mm	Male Pin	Black	3 A	-40 °C	105 ░C			0.23 in	5.84 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.07
		10	$ 0.90
		100	$ 0.81
		500	$ 0.66
		1000	$ 0.59
		5000	$ 0.53

Description

General part information

PRPC039 Series

Connector Header Through Hole, Right Angle 39 position 0.100" (2.54mm)

Documents

Technical documentation and resources
