DCU-08BMEA-LL7001

Active

Amphenol LTW

LARGE

Search across all available documentation for this part.

Active

Amphenol LTW

LARGE

Technical Specifications

Parameters and characteristics for this part

Specification	DCU-08BMEA-LL7001

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [custom]	0.374 in, 0.425 in
Cable Opening [custom]	10.8 mm
Cable Opening [custom]	9.5 mm
Color	Black
Connector Type	Female Sockets, Male Pins, Receptacle
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	20 A, 2 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	D
Shielding	Unshielded

Part	Mounting Type	Ingress Protection	Shielding	Features	Shell Size - Insert	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Contact Material	Color	Connector Type	Current Rating (Amps)	Backshell Material, Plating	Contact Finish - Mating	Orientation	Primary Material	Insert Material	Fastening Type	Number of Positions	Shell Material
Amphenol LTW DCU-08BMEA-LL7001	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Unshielded	Backshell Coupling Nut	D	0.374 in 0.425 in	10.8 mm	9.5 mm	Copper Alloy	Black	Female Sockets Male Pins Receptacle	2 A 20 A	Nylon Polyamide (PA)	Gold	Keyed	Plastic	Polyamide (PA) Nylon Glass Filled	Bayonet Lock	8	Glass Filled Nylon Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 15.28

General part information

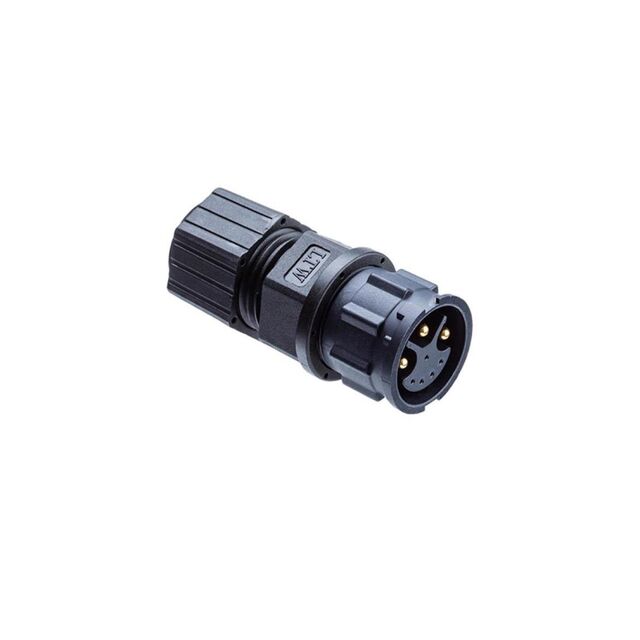

8 Position Circular Connector Receptacle, Female Sockets and Male Pins Solder Cup

Technical documentation and resources

No documents available
