162-40-664-00-180000

Active

Mill-Max Manufacturing Corp.

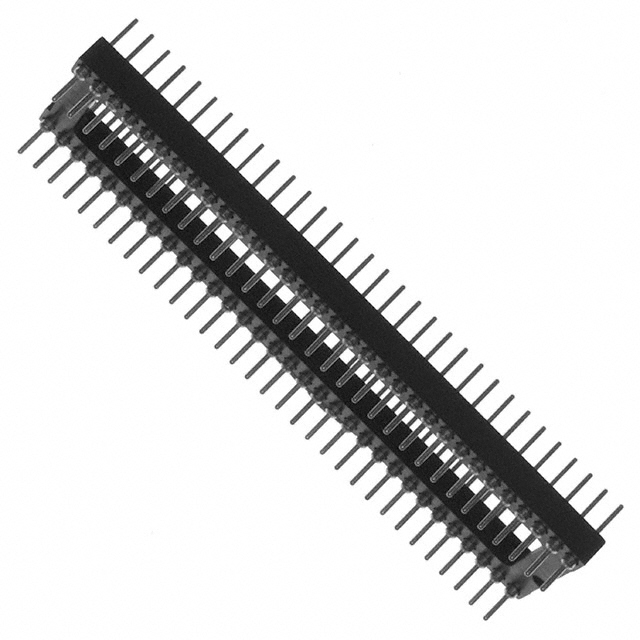

CONN HDR DIP POST 64POS TIN

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN HDR DIP POST 64POS TIN

Technical Specifications

Parameters and characteristics for this part

Part	Color	Pitch [x]	Pitch [x]	Connector Type	Contact Finish	Number of Rows	Mounting Type	Row Spacing	Row Spacing	Termination	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Number of Positions
Mill-Max Manufacturing Corp. 162-40-640-00-180000	Black	0.07 in	1.78 mm	DIL - Header DIP	Tin	2	Through Hole	0.6 in	15.24 mm	Solder	200 Áin	5.08 Ám	40
Mill-Max Manufacturing Corp. 162-40-448-00-180000	Black	0.07 in	1.78 mm	DIL - Header DIP	Tin	2	Through Hole	0.4 in	10.16 mm	Solder	200 Áin	5.08 Ám	48
Mill-Max Manufacturing Corp. 162-40-664-00-180000	Black	0.07 in	1.78 mm	DIL - Header DIP	Tin	2	Through Hole	0.6 in	15.24 mm	Solder	200 Áin	5.08 Ám	64
Mill-Max Manufacturing Corp. 162-40-316-00-180000	Black	0.07 in	1.78 mm	DIL - Header DIP	Tin	2	Through Hole	0.3 in	7.62 mm	Solder	200 Áin	5.08 Ám		16
Mill-Max Manufacturing Corp. 162-40-648-00-180000	Black	0.07 in	1.78 mm	DIL - Header DIP	Tin	2	Through Hole	0.6 in	15.24 mm	Solder	200 Áin	5.08 Ám	48
Mill-Max Manufacturing Corp. 162-40-652-00-180000	Black	0.07 in	1.78 mm	DIL - Header DIP	Tin	2	Through Hole	0.6 in	15.24 mm	Solder	200 Áin	5.08 Ám	52

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	54	$ 20.30

General part information

64 Position DIP, DIL - Header Connector Post Tin

Technical documentation and resources

No documents available
