C14611G0245011

Active

Amphenol Tuchel Industrial

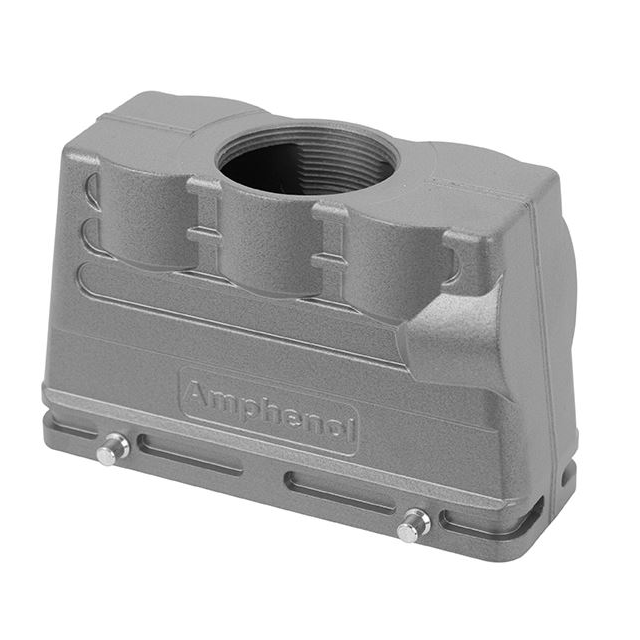

CONN HOOD SIDE ENTRY SZE24 PG29

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZE24 PG29

Technical Specifications

Parameters and characteristics for this part

Specification	C14611G0245011

Connector Type	Hood
Housing Finish	EMC Coating
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Size	E24
Size / Dimension [x]	4.724 "
Size / Dimension [x]	120 mm
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	2.441 "
Size / Dimension [z]	62 mm
Style	Side Entry
Thread Size	PG29

Part	Thread Size	Housing Finish	Lock Location	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Ingress Protection	Housing Material	Size	Style	Connector Type
Amphenol Tuchel Industrial C14611G0245011	PG29	EMC Coating	Locking Clip (2) on Base Bottom	2.441 "	4.724 "	120 mm	1.693 in	62 mm	43 mm	IP65 - Dust Tight Water Resistant	Aluminum Alloy Die Cast	E24	Side Entry	Hood

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	30	$ 22.40

General part information

Hood Connector Side Entry PG29 E24 IP65 - Dust Tight, Water Resistant

Technical documentation and resources

No documents available
