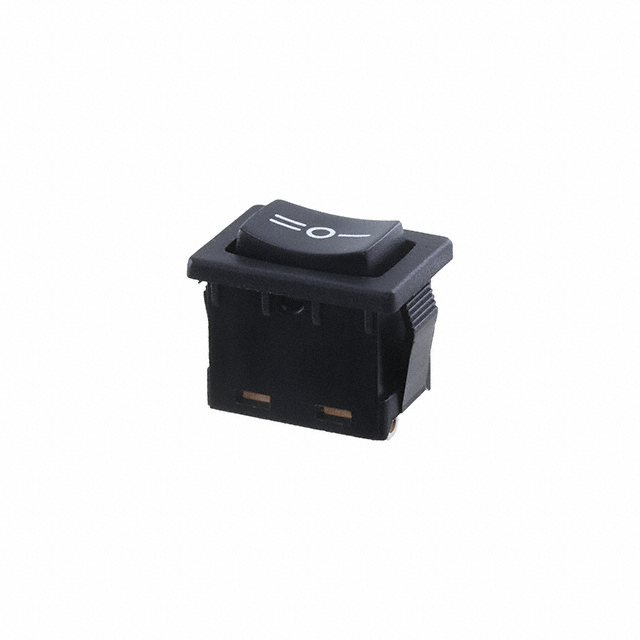

R1966DBLKBLKCS

Active

E-Switch

SWITCH ROCKER SPDT 15A 125V

Deep-Dive with AI

Search across all available documentation for this part.

R1966DBLKBLKCS

Active

E-Switch

SWITCH ROCKER SPDT 15A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R1966DBLKBLKCS

Actuator Marking	- O =
Actuator Type	Concave (Curved)
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	15 A
Electrical Life	10000 Cycles
Mechanical Life	30000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Off-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V

R1966DBL Series

Part	Mechanical Life	Electrical Life	Color - Actuator/Cap	Circuit	Termination Style	Mounting Type	Current Rating (Amps)	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Actuator Type	Switch Function
E-Switch R1966DBLKBLKHS	30000 Steps	10000 Cycles	Black	SPDT	Solder Lug	Panel Mount Snap-In	15 A	Triangular Arrows with O	65 °C	-30 ░C	125 V	Concave (Curved)	On-Off-On
E-Switch R1966DBLKBLKBR	30000 Steps	10000 Cycles	Black	SPDT	PC Pin	Panel Mount Right Angle Snap-In	15 A	I O II	65 °C	-30 ░C	125 V	Concave (Curved)	On-Off-On
E-Switch R1966DBLKBLKBF	30000 Steps	10000 Cycles	Black	SPDT	Quick Connect - 0.187" (4.7mm)	Panel Mount Snap-In	15 A	I O II	65 °C	-30 ░C	125 V	Concave (Curved)	On-Off-On
E-Switch R1966DBLKBLKBP	30000 Steps	10000 Cycles	Black	SPDT	PC Pin	Panel Mount Snap-In	15 A	I O II	65 °C	-30 ░C	125 V	Concave (Curved)	On-Off-On
E-Switch R1966DBLKBLKES	30000 Steps	10000 Cycles	Black	SPDT	Solder Lug	Panel Mount Snap-In	15 A	No Marking	65 °C	-30 ░C	125 V	Concave (Curved)	On-Off-On
E-Switch R1966DBLKBLKHP	30000 Steps	10000 Cycles	Black	SPDT	PC Pin	Panel Mount Snap-In	15 A	Triangular Arrows with O	65 °C	-30 ░C	125 V	Concave (Curved)	On-Off-On
E-Switch R1966DBLKREDIP	30000 Steps	10000 Cycles	Red	SPDT	PC Pin	Panel Mount Snap-In	15 A	ON OFF Vertical	65 °C	-30 ░C	125 V	Concave (Curved)	On-Off-On
E-Switch R1966DBLKBLKHF	30000 Steps	10000 Cycles	Black	SPDT	Quick Connect - 0.187" (4.7mm)	Panel Mount Snap-In	15 A	Triangular Arrows with O	65 °C	-30 ░C	125 V	Concave (Curved)	On-Off-On
E-Switch R1966DBLKBLKBS	30000 Steps	10000 Cycles	Black	SPDT	Solder Lug	Panel Mount Snap-In	15 A	I O II	65 °C	-30 ░C	125 V	Concave (Curved)	On-Off-On
E-Switch R1966DBLKBLKCS	30000 Steps	10000 Cycles	Black	SPDT	Solder Lug	Panel Mount Snap-In	15 A	- O =	65 °C	-30 ░C	125 V	Concave (Curved)	On-Off-On

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.03
		10	$ 1.75
		25	$ 1.65
		50	$ 1.58
		200	$ 1.45
		400	$ 1.38
		600	$ 1.35
		1000	$ 1.31

Description

General part information

R1966DBL Series

Rocker Switch SPDT 15A (AC) 125 V Panel Mount, Snap-In

Documents

Technical documentation and resources

No documents available
