Active

Mill-Max Manufacturing Corp.

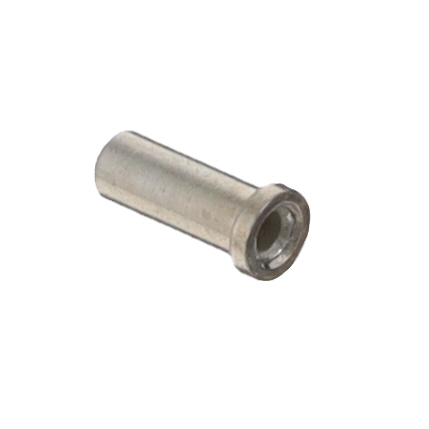

CONN PIN RCPT .015-.025 SOLDER

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.025 SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	0682-0-15-01-32-02-10-0

Accepts Pin Diameter [Max]	0.025 "
Accepts Pin Diameter [Max]	0.64 mm
Accepts Pin Diameter [Min]	0.015 "
Accepts Pin Diameter [Min]	0.38 mm
Contact Finish	Tin-Lead
Contact Finish Thickness	2.54 µm
Contact Finish Thickness	100 µin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.83 mm
Flange Diameter [diameter]	0.072 in
Length - Overall [x]	0.166 in
Length - Overall [x]	4.22 mm
Mounting Hole Diameter [diameter]	1.42 mm
Mounting Hole Diameter [diameter]	0.056 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Socket Depth	0.147 in
Socket Depth	3.73 mm
Tail Type	No Tail
Termination	Solder

Part	Termination	Contact Material	Tail Type	Contact Finish Thickness	Contact Finish Thickness	Socket Depth	Socket Depth	Contact Finish	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall [x]	Length - Overall [x]	Flange Diameter [diameter]	Flange Diameter [diameter]
Mill-Max Manufacturing Corp. 0682-0-15-15-32-27-10-0	Solder	Beryllium Copper	No Tail	0.76 Ám	30 Áin	0.147 in	3.73 mm	Gold	0.025 "	0.64 mm	0.015 "	0.38 mm	1.42 mm	0.056 in	-55 °C	125 °C	0.166 in	4.22 mm	1.83 mm	0.072 in
Mill-Max Manufacturing Corp. 0682-0-15-15-32-14-10-0	Solder	Beryllium Copper	No Tail	0.25 Ám	10 Áin	0.147 in	3.73 mm	Gold	0.025 "	0.64 mm	0.015 "	0.38 mm	1.42 mm	0.056 in	-55 °C	125 °C	0.166 in	4.22 mm	1.83 mm	0.072 in
Mill-Max Manufacturing Corp. 0682-0-15-01-32-02-10-0	Solder	Beryllium Copper	No Tail	2.54 µm	100 µin	0.147 in	3.73 mm	Tin-Lead	0.025 "	0.64 mm	0.015 "	0.38 mm	1.42 mm	0.056 in	-55 °C	125 °C	0.166 in	4.22 mm	1.83 mm	0.072 in
Mill-Max Manufacturing Corp. 0682-0-15-80-32-27-10-0	Solder	Beryllium Copper	No Tail	0.76 Ám	30 Áin	0.147 in	3.73 mm	Gold	0.025 "	0.64 mm	0.015 "	0.38 mm	1.42 mm	0.056 in	-55 °C	125 °C	0.166 in	4.22 mm	1.83 mm	0.072 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) No Tail Solder
