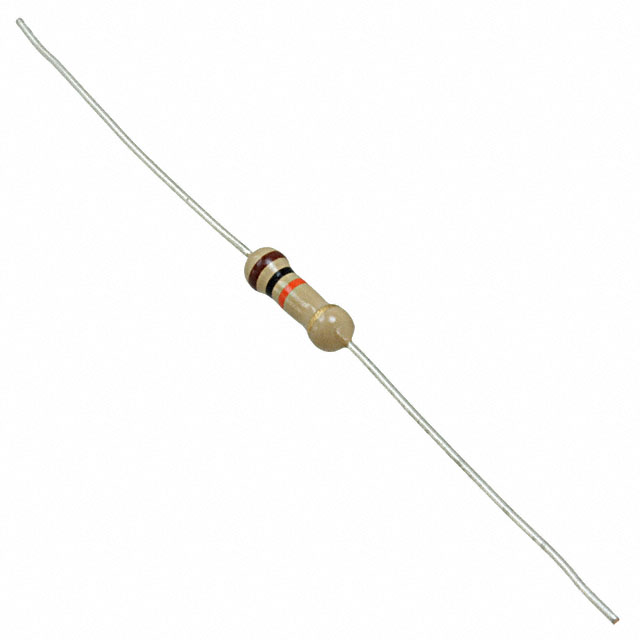

CFR50J3M9

Active

TE Connectivity Passive Product

RES 3.9M OHM 5% 1/2W AXIAL

Deep-Dive with AI

Search across all available documentation for this part.

CFR50J3M9

Active

TE Connectivity Passive Product

RES 3.9M OHM 5% 1/2W AXIAL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CFR50J3M9

Composition	Carbon Film
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Power (Watts)	0.5 W
Power (Watts)	0.5 W
Resistance	3.9 MOhms
Size / Dimension [diameter]	3 mm
Size / Dimension [diameter]	0.118 in
Size / Dimension [x]	0.354 "
Size / Dimension [x]	9 mm
Supplier Device Package	Axial
Temperature Coefficient [Max]	0
Temperature Coefficient [Min]	-1500 ppm/°C
Tolerance	5 %

CFR50 Series

Part	Supplier Device Package	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Tolerance	Resistance	Package / Case	Composition	Temperature Coefficient [Max]	Temperature Coefficient [Min]	Power (Watts)	Power (Watts)	Number of Terminations	Operating Temperature [Max]	Operating Temperature [Min]	Temperature Coefficient
TE Connectivity Passive Product CFR50J10K/S	Axial	0.354 "	3 mm	9 mm	0.118 in	5 %	10000 Ohms	Axial	Carbon Film	-450 ppm/°C	0 ppm/°C	0.5 W	0.5 W	2	155 °C	-55 °C
TE Connectivity Passive Product CFR50J10M	Axial	0.354 "	3 mm	9 mm	0.118 in	5 %	10 MOhms	Axial	Carbon Film	0	-1500 ppm/°C	0.5 W	0.5 W	2	155 °C	-55 °C
TE Connectivity Passive Product CFR50J15R	Axial	0.354 "	3 mm	9 mm	0.118 in	5 %	15 Ohms	Axial	Carbon Film	-450 ppm/°C	0 ppm/°C	0.5 W	0.5 W	2	155 °C	-55 °C
TE Connectivity Passive Product CFR50J3R9	Axial	0.354 "	3 mm	9 mm	0.118 in	5 %	3.9 Ohms	Axial	Carbon Film			0.5 W	0.5 W	2	155 °C	-55 °C	350 ppm/°C
TE Connectivity Passive Product CFR50J150K	Axial	0.354 "	3 mm	9 mm	0.118 in	5 %	150000 Ohms	Axial	Carbon Film	-700 ppm/°C	0 ppm/°C	0.5 W	0.5 W	2	155 °C	-55 °C
TE Connectivity Passive Product CFR50J560K	Axial	0.354 "	3 mm	9 mm	0.118 in	5 %	560 kOhms	Axial	Carbon Film	-700 ppm/°C	0 ppm/°C	0.5 W	0.5 W	2	155 °C	-55 °C
TE Connectivity Passive Product CFR50J6R8	Axial	0.354 "	3 mm	9 mm	0.118 in	5 %	6.8 Ohms	Axial	Carbon Film			0.5 W	0.5 W	2	155 °C	-55 °C	350 ppm/°C
TE Connectivity Passive Product CFR50J68K	Axial	0.354 "	3 mm	9 mm	0.118 in	5 %	68 kOhms	Axial	Carbon Film	-450 ppm/°C	0 ppm/°C	0.5 W	0.5 W	2	155 °C	-55 °C
TE Connectivity Passive Product CFR50J5M6	Axial	0.354 "	3 mm	9 mm	0.118 in	5 %	5.6 MOhms	Axial	Carbon Film	0	-1500 ppm/°C	0.5 W	0.5 W	2	155 °C	-55 °C
TE Connectivity Passive Product CFR50J3M9	Axial	0.354 "	3 mm	9 mm	0.118 in	5 %	3.9 MOhms	Axial	Carbon Film	0	-1500 ppm/°C	0.5 W	0.5 W	2	155 °C	-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.15
		10	$ 0.12
		25	$ 0.09
		50	$ 0.07
		100	$ 0.05
		250	$ 0.04
		500	$ 0.03
		1000	$ 0.02
	Tape & Box (TB)	3000	$ 0.01
		6000	$ 0.01

Description

General part information

CFR50 Series

3.9 MOhms ±5% 0.5W, 1/2W Through Hole Resistor Axial Carbon Film

Documents

Technical documentation and resources

No documents available
