Connectors, Interconnects
788085-3
ActiveTE Connectivity Raychem Cable Protection

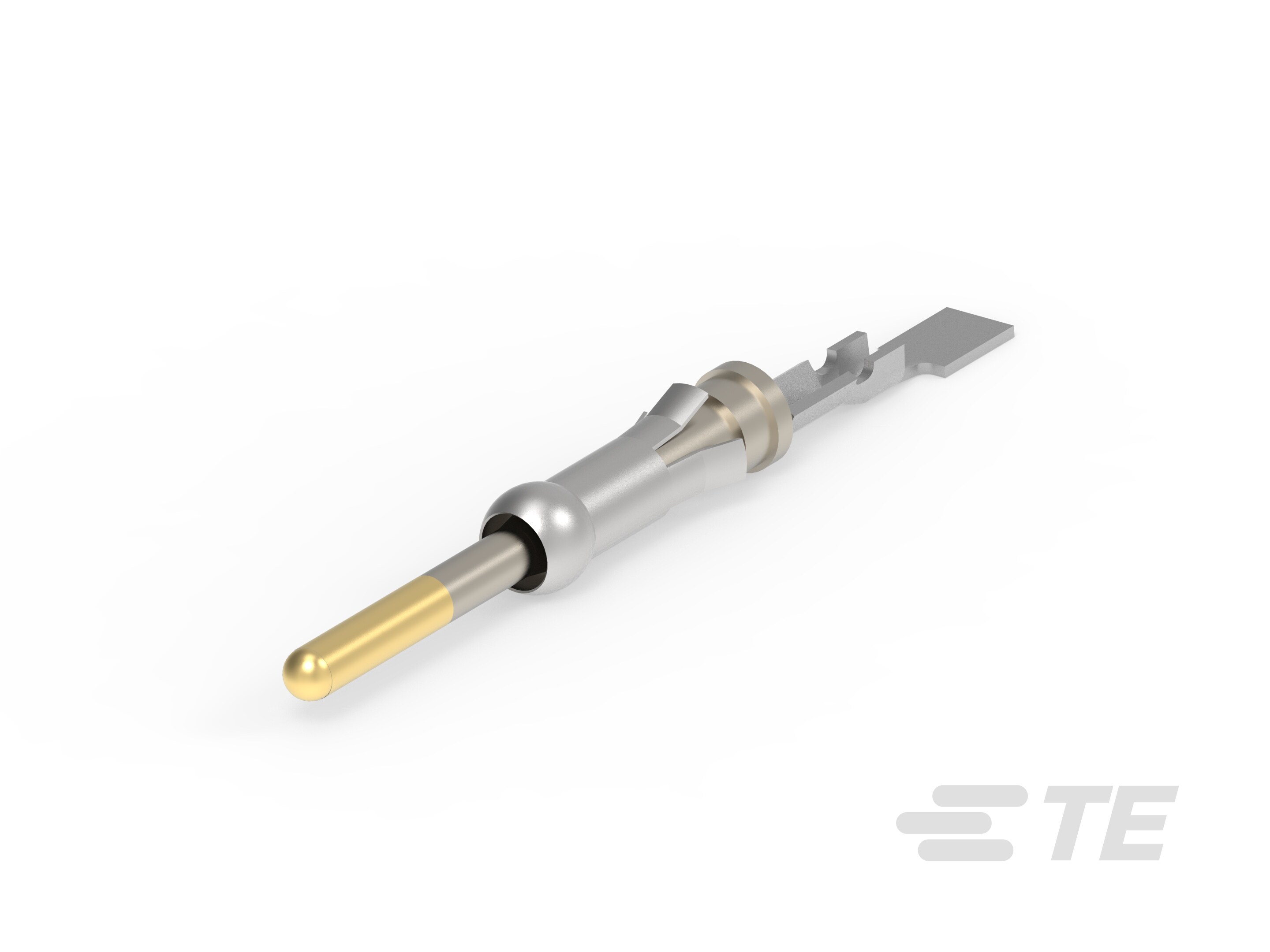

TYPE III+ PIN ASSEMBLY,.062 ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 788085-3 |
|---|---|
| Contact Finish | PdNi +Gold, Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Material | Brass |
| Contact Termination | Crimp |
| Pin or Socket | Pin |
| Type | Stamped |
| Wire Gauge [Max] | 30 AWG |
| Wire Gauge [Min] | 27.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
788085 Series
Pin Contact Gold or PdNi +Gold Crimp 28-30 AWG Stamped
