55025-04
ActiveCole Hersee

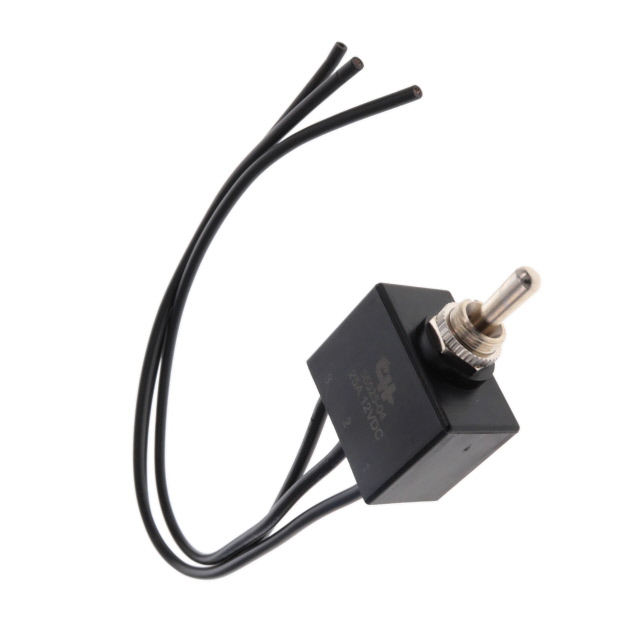

SWITCH TOGGLE SPDT 15A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
55025-04
ActiveCole Hersee
SWITCH TOGGLE SPDT 15A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 55025-04 | 55025 Series |
|---|---|---|
| Actuator Length [z] | 15.3 mm | 15.3 mm |
| Actuator Material | Brass, Nickel Plated | Brass, Nickel Plated |
| Actuator Type | Standard Round | Standard Round |
| Bushing Thread | 15/32-32 | 15/32-32 |
| Circuit | SPDT | SPDT |
| Current Rating (Amps) | 15 A | 15 A |
| Illumination | Non-Illuminated | Non-Illuminated |
| Panel Cutout Dimensions [diameter] | 11.9 mm | 11.9 mm |
| Switch Function | Mom-Off-Mom | On-On, Mom-Off-Mom |
| Termination Style | Wire Leads | Wire Leads |
| Voltage Rating - DC | 24 V | 24 V |
55025 Series
SWITCH TOGGLE SPDT 15A 24V
| Part | Circuit | Switch Function | Panel Cutout Dimensions [diameter] | Actuator Type | Termination Style | Voltage Rating - DC | Current Rating (Amps) | Illumination | Bushing Thread | Actuator Length [z] | Actuator Material |
|---|---|---|---|---|---|---|---|---|---|---|---|
Cole Hersee 55025-03 | SPDT | On-On | 11.9 mm | Standard Round | Wire Leads | 24 V | 15 A | Non-Illuminated | 15/32-32 | 15.3 mm | Brass, Nickel Plated |
Cole Hersee 55025-04 | SPDT | Mom-Off-Mom | 11.9 mm | Standard Round | Wire Leads | 24 V | 15 A | Non-Illuminated | 15/32-32 | 15.3 mm | Brass, Nickel Plated |
