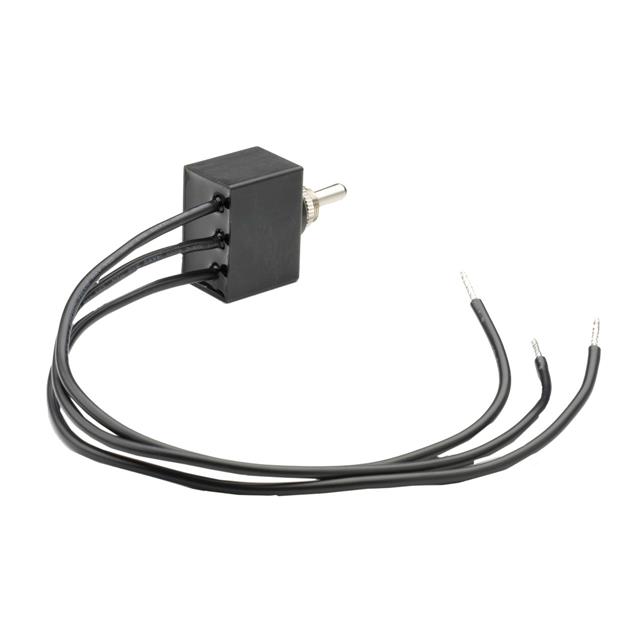

55025-03

Active

Cole Hersee

SWITCH TOGGLE SPDT 15A 24V

Search across all available documentation for this part.

Active

Cole Hersee

SWITCH TOGGLE SPDT 15A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	55025-03	55025 Series

Actuator Length [z]	15.3 mm	15.3 mm
Actuator Material	Brass, Nickel Plated	Brass, Nickel Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	15/32-32	15/32-32
Circuit	SPDT	SPDT
Current Rating (Amps)	15 A	15 A
Illumination	Non-Illuminated	Non-Illuminated
Panel Cutout Dimensions [diameter]	11.9 mm	11.9 mm
Switch Function	On-On	On-On, Mom-Off-Mom
Termination Style	Wire Leads	Wire Leads
Voltage Rating - DC	24 V	24 V

SWITCH TOGGLE SPDT 15A 24V

Part	Circuit	Switch Function	Panel Cutout Dimensions [diameter]	Actuator Type	Termination Style	Voltage Rating - DC	Current Rating (Amps)	Illumination	Bushing Thread	Actuator Length [z]	Actuator Material
Cole Hersee 55025-03	SPDT	On-On	11.9 mm	Standard Round	Wire Leads	24 V	15 A	Non-Illuminated	15/32-32	15.3 mm	Brass, Nickel Plated
Cole Hersee 55025-04	SPDT	Mom-Off-Mom	11.9 mm	Standard Round	Wire Leads	24 V	15 A	Non-Illuminated	15/32-32	15.3 mm	Brass, Nickel Plated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Panel Mount
