AFCC-08

Active

Essentra Access Solutions

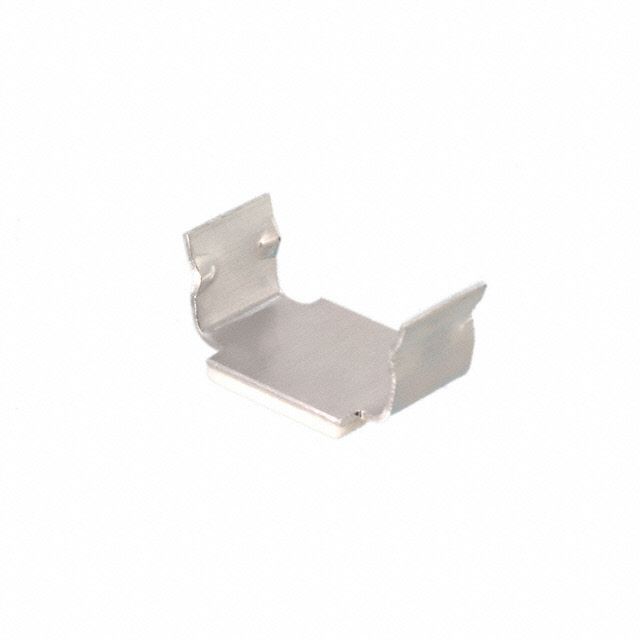

FASTENER, ADHESIVE BACKED FLAT CABLE CLAMP, ALUMINIUM, 13.7 MM, 9 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

FASTENER, ADHESIVE BACKED FLAT CABLE CLAMP, ALUMINIUM, 13.7 MM, 9 MM

Technical Specifications

Parameters and characteristics for this part

Part	Width	Width	Adhesive	Height [z]	Height [z]	Material	Type	Mounting Type	Type Attributes	Material Thickness	Material Thickness	Color	Opening Size [custom]	Opening Size [custom]	Height	Opening Size [z]	Opening Size	Opening Size [diameter]	Opening Size [diameter]
Essentra Access Solutions AFCC-21	9 mm	0.354 "	Rubber Based (RMS-34)	9.78 mm	0.385 in	Aluminum	Clip Flat C-Type	Adhesive	Bendable	0.02 in	0.5 mm	Silver	1.312 in	33.32 mm
Essentra Access Solutions AFCC-20	9 mm	0.354 "	Rubber Based (RMS-34)		0.375 in	Aluminum	Clip Flat C-Type	Adhesive	Bendable	0.02 in	0.5 mm	Silver	1.25 in	31.75 mm	9.53 mm
Essentra Access Solutions AFCC-27.5	9 mm	0.354 "	Rubber Based (RMS-34)	12.44 mm	0.49 in	Aluminum	Clip Flat C-Type	Adhesive	Bendable	0.02 in	0.5 mm	Silver	1.715 in	43.56 mm
Essentra Access Solutions AFCC-12	9 mm	0.354 "	Rubber Based (RMS-34)	6.35 mm	6.35 mm	Aluminum	Clip Flat C-Type	Adhesive	Bendable	0.02 in	0.5 mm	Silver				0.75 in	19.05 mm
Essentra Access Solutions AFCC-24	9 mm	0.354 "	Rubber Based (RMS-34)	11.1 mm	0.437 in	Aluminum	Clip Flat C-Type	Adhesive	Bendable	0.02 in	0.5 mm	Silver						1.5 in	38.1 mm
Essentra Access Solutions AFCC-08	9 mm	0.354 "	Rubber Based (RMS-34)	6.35 mm	6.35 mm	Aluminum	Clip Flat C-Type	Adhesive	Bendable	0.02 in	0.5 mm	Silver						0.5 in	12.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Flat C-Type Silver Adhesive 0.500" (12.70mm)
