307-044-524-258
ActiveEDAC Inc.
3.96MM STRAIGHT 44P -40℃~+105℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 307-044-524-258 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 44 |
| Number of Positions/Bay/Row [custom] | 22 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
307-044 Series
...
| Part | Number of Positions | Material - Insulation | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Mounting Type | Gender | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Termination Rows | Contact Material | Termination | Number of Rows | Contact Type | Read Out | Color | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 88 | Polyester Thermoplastic | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | Through Hole Right Angle | Female | Non Specified - Dual Edge | -40 °C | 105 ░C | Tin | 1 | Copper Alloy | Solder | 2 | Semi Bellows | Dual | Green | |||
EDAC Inc. | 44 | Polyester Thermoplastic | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | Female | Non Specified - Dual Edge | -40 °C | 105 ░C | Gold | 2 | Copper Alloy | Solder Wire Wrap | 2 | Semi Bellows | Dual | Green | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 44 | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | Through Hole | Female | Non Specified - Single Edge | -40 °C | 105 ░C | Tin | 1 | Copper Alloy | Solder Eyelet(s) | 1 | Semi Bellows | Single | Green | |||||
EDAC Inc. | 44 | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | Through Hole | Female | Non Specified - Single Edge | -40 °C | 105 ░C | Tin | 1 | Copper Alloy | Wire Wrap | 1 | Semi Bellows | Single | Green | Card Guides | ||||
EDAC Inc. | 44 | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 22 | Through Hole | Female | Non Specified - Dual Edge | -40 °C | 105 ░C | Tin | 2 | Copper Alloy | Solder Eyelet(s) | 2 | Semi Bellows | Dual | Green | |||||
EDAC Inc. | 44 | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | Through Hole Right Angle | Female | Non Specified - Single Edge | -40 °C | 105 ░C | Gold | 1 | Copper Alloy | Solder | 1 | Semi Bellows | Single | Green | 10 Áin | 0.25 Ám | Card Guides | ||
EDAC Inc. | 88 | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | Through Hole | Female | Non Specified - Dual Edge | -40 °C | 105 ░C | Gold | 1 | Copper Alloy | Solder | 2 | Semi Bellows | Dual | Green | 10 Áin | 0.25 Ám | Card Guides | ||
EDAC Inc. | 88 | Polyester Thermoplastic | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | Through Hole | Female | Non Specified - Dual Edge | -40 °C | 105 ░C | Tin | 1 | Copper Alloy | Solder | 2 | Semi Bellows | Dual | Green | ||||||
EDAC Inc. | 44 | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 22 | Through Hole | Female | Non Specified - Dual Edge | -40 °C | 105 ░C | Gold | 2 | Copper Alloy | Solder | 2 | Semi Bellows | Dual | Green | 10 Áin | 0.25 Ám | Card Guides | ||
EDAC Inc. | 44 | Polyester Thermoplastic | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 22 | Through Hole | Female | Non Specified - Dual Edge | -40 °C | 105 ░C | Gold | 2 | Copper Alloy | Wire Wrap | 2 | Semi Bellows | Dual | Green | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
307-044 Series

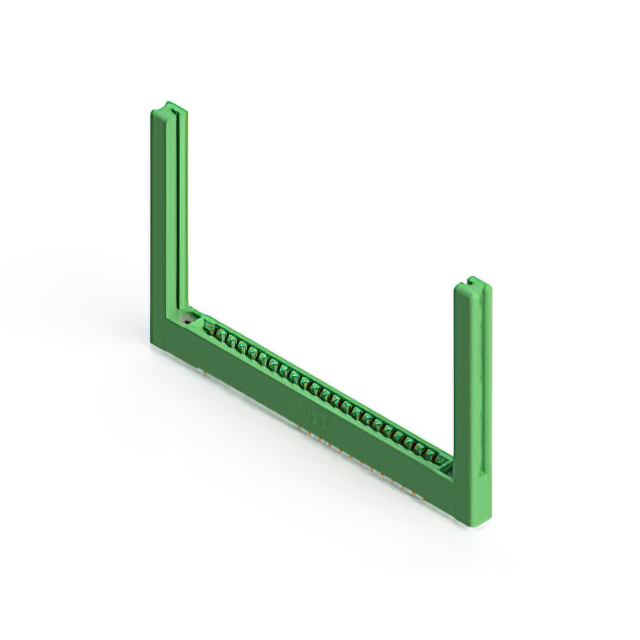

44 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
