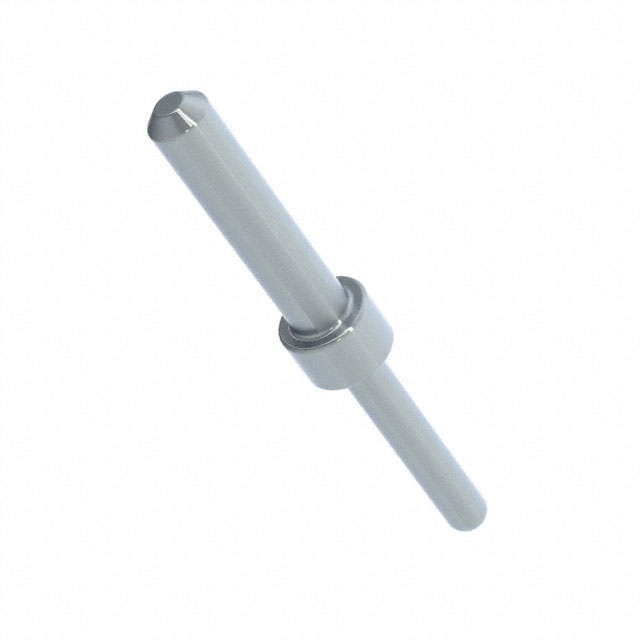

3137-4-00-80-00-00-08-0

Active

Mill-Max Manufacturing Corp.

CONN PC PIN CIRC

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PC PIN CIRC

Technical Specifications

Parameters and characteristics for this part

Specification	3137-4-00-80-00-00-08-0

Board Thickness	0.062 in
Board Thickness	1.57 mm
Contact Finish	Tin
Contact Finish Thickness	200 Áin
Contact Finish Thickness	5.08 Ám
Contact Material	Brass Alloy
Flange Diameter [diameter]	0.062 in
Flange Diameter [diameter]	1.57 mm
Insulation	Non-Insulated
Length - Above Flange [x]	0.185 in
Length - Above Flange [x]	4.7 mm
Length - Below Flange [x]	4.57 mm
Length - Below Flange [x]	0.18 in
Length - Overall	10.29 mm
Length - Overall [x]	0.405 in
Mounting Hole Diameter [diameter]	1.09 mm
Mounting Hole Diameter [diameter]	0.043 in
Mounting Type	Through Hole
Pin Size - Above Flange [diameter]	1.02 mm
Pin Size - Above Flange [diameter]	0.04 in
Pin Size - Below Flange [diameter]	0.03 in
Pin Size - Below Flange [diameter]	0.76 mm
Terminal Style	Double End
Terminal Type	PC Pin
Termination	Solder

Part	Length - Below Flange [x]	Length - Below Flange [x]	Board Thickness [z]	Board Thickness [z]	Terminal Style	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Contact Material	Length - Overall	Length - Overall [x]	Pin Size - Below Flange [diameter]	Pin Size - Below Flange [diameter]	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Terminal Type	Termination	Length - Above Flange [x]	Length - Above Flange [x]	Insulation	Contact Finish Thickness	Contact Finish Thickness	Board Thickness	Board Thickness
Mill-Max Manufacturing Corp. 3137-4-00-15-00-00-08-0	4.57 mm	0.18 in	3.96 mm	0.156 in	Double End	1.09 mm	0.043 in	Through Hole	0.062 in	1.57 mm	Gold	Brass Alloy	10.29 mm	0.405 in	0.03 in	0.76 mm	1.02 mm	0.04 in	PC Pin	Solder	0.185 in	4.7 mm	Non-Insulated	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 3137-4-00-21-00-00-08-0	4.57 mm	0.18 in	3.96 mm	0.156 in	Double End	1.09 mm	0.043 in	Through Hole	0.062 in	1.57 mm	Gold	Brass Alloy	10.29 mm	0.405 in	0.03 in	0.76 mm	1.02 mm	0.04 in	PC Pin	Solder	0.185 in	4.7 mm	Non-Insulated	20 µin	0.51 µm
Mill-Max Manufacturing Corp. 3137-4-00-80-00-00-08-0	4.57 mm	0.18 in			Double End	1.09 mm	0.043 in	Through Hole	0.062 in	1.57 mm	Tin	Brass Alloy	10.29 mm	0.405 in	0.03 in	0.76 mm	1.02 mm	0.04 in	PC Pin	Solder	0.185 in	4.7 mm	Non-Insulated	200 Áin	5.08 Ám	0.062 in	1.57 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.41

General part information

PC Pin Terminal Connector Through Hole Tin 0.040" (1.02mm) Dia
