3391/10 100

Obsolete

3M (TC)

CBL RIBN 10COND 0.156 MULT 10'

Search across all available documentation for this part.

Obsolete

3M (TC)

CBL RIBN 10COND 0.156 MULT 10'

Technical Specifications

Parameters and characteristics for this part

Part	Wire Gauge	Conductor Material	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Ribbon Width	Ribbon Width	Number of Conductors	Pitch [x]	Pitch [x]	Features	Ribbon Thickness	Ribbon Thickness	Length [x]	Length [x]	Jacket (Insulation) Material	Voltage	Insulation Resistance	Shielding	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Length	Length
3M (TC) 3391/22	22 AWG	Copper Tinned	UL Style 20122	-20 C	80 C	3.354 in	85.19 mm	22	0.156 in	3.96 mm	Zippable	1.75 mm	0.069 in	100 ft	30.48 m	Poly-Vinyl Chloride (PVC)	600 V	1 GOhms	Unshielded	Flat Cable	7	36 AWG	Multiple
3M (TC) 3391/15 100	22 AWG	Copper Tinned	UL Style 20122	-20 C	80 C	2.262 in	57.45 mm	15	0.156 in	3.96 mm	Zippable	1.75 mm	0.069 in	100 ft	30.48 m	Poly-Vinyl Chloride (PVC)	600 V	1 GOhms	Unshielded	Flat Cable	7	36 AWG	Multiple
3M (TC) 3391/06 100	22 AWG	Copper Tinned	UL Style 20122	-20 C	80 C	0.85 in	21.59 mm	6	0.156 in	3.96 mm	Zippable	1.75 mm	0.069 in	10 ft	3.05 m	Poly-Vinyl Chloride (PVC)	600 V	1 GOhms	Unshielded	Flat Cable	7	36 AWG	Multiple	25 ft	7.62 m
3M (TC) 3391/10 100	22 AWG	Copper Tinned	UL Style 20122	-20 C	80 C	1.482 in	37.64 mm	10	0.156 in	3.96 mm	Zippable	1.75 mm	0.069 in	10 ft	3.05 m	Poly-Vinyl Chloride (PVC)	600 V	1 GOhms	Unshielded	Flat Cable	7	36 AWG	Multiple

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

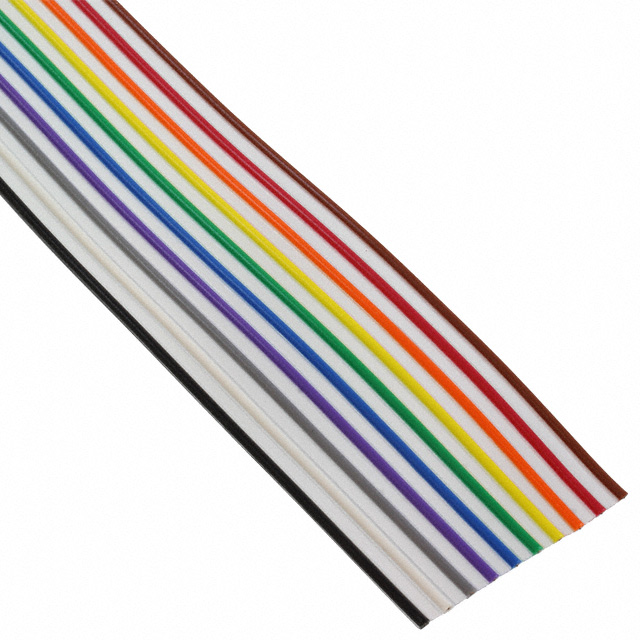

Flat Ribbon Cable Multiple 10 Conductors 0.156" (3.96mm) Flat Cable 10.0' (3.05m)
