V7-7H25D8-263-1
ActiveHoneywell Sensing and Productivity Solutions

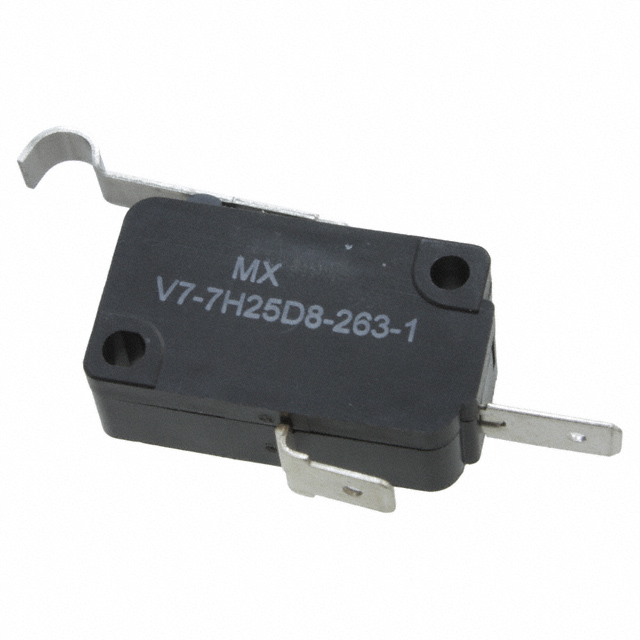

SWITCH SNAP ACT SPST-NO 5A 125V
Deep-Dive with AI
Search across all available documentation for this part.
V7-7H25D8-263-1
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACT SPST-NO 5A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | V7-7H25D8-263-1 | V7-7 Series |
|---|---|---|
| - | - | |
| Actuator Type | Simulated Roller, Lever | Formed, Lever, Round (Pin Plunger), Simulated Roller |
| Circuit | SPST-NO | SPDT, SPST-NO, SPST-NC |
| Current Rating (Amps) | 5 A | 5 - 500 A |
| Differential Travel | 0.05 in | 0.01 - 0.06 in |
| Differential Travel | 1.3 mm | 0.25 - 1.5 mm |
| Electrical Life | 100000 Cycles | 100000 Cycles |
| Mechanical Life | 10000000 Cycles | 10000000 Cycles |
| Mounting Type | Chassis Mount | Chassis Mount |
| Operating Force | 113 gf | 63 - 273 gf |
| Operating Position | 0.73 in | 0.56 - 0.846 in |
| Operating Position | 18.5 mm | 14.2 - 21.5 mm |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Overtravel | 2.03 mm | 0.81 - 3.4 mm |
| Overtravel | 0.08 in | 0.032 - 0.134 " |
| Pretravel | 3.2 mm | 3.2 mm |
| Pretravel | 0.125 in | 0.125 - 7 mm |
| Pretravel | - | 0.047 - 0.275 in |
| Release Force | 14 gf | 8 - 57 gf |
| Switch Function | Off-Mom | On-Mom, Off-Mom |
| Termination Style | Quick Connect - 0.187" (4.7mm) | Quick Connect - 0.187" (4.7mm), Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V | 125 V |
| Voltage Rating - DC | - | 125 VDC |
V7-7 Series
SWITCH SNAP ACTION SPDT 5A 125V
| Part | Mounting Type | Electrical Life | Overtravel | Overtravel | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Operating Force | Pretravel | Pretravel | Operating Position | Operating Position | Switch Function | Differential Travel | Differential Travel | Circuit | Current Rating (Amps) | Voltage Rating - AC | Mechanical Life | Release Force | Termination Style | Voltage Rating - DC | Pretravel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Honeywell Sensing and Productivity Solutions V7-7A19D8-374 | Chassis Mount | 100000 Cycles | 1.2 mm | 0.047 " | Formed, Lever | 85 °C | -40 °C | 200 gf | 2.05 mm | 0.081 in | 0.846 in | 21.5 mm | On-Mom | 0.019 in | 0.47 mm | SPDT | 5 A | 125 V | 10000000 Cycles | 28 gf | Quick Connect - 0.187" (4.7mm) | ||
Honeywell Sensing and Productivity Solutions V7-7C19D8-640 | Chassis Mount | 100000 Cycles | 3.4 mm | 0.134 in | 85 °C | -40 °C | 64 gf | 6.85 mm | 0.27 in | 0.602 " | 15.3 mm | On-Mom | 0.06 " | 1.5 mm | SPDT | 15 A, 500 mA | 125 V | 10000000 Cycles | 8.5 gf | Quick Connect - 0.187" (4.7mm) | 125 VDC | ||
Honeywell Sensing and Productivity Solutions V7-7B17D8 | Chassis Mount | 100000 Cycles | 1 mm | 0.04 in | Round (Pin Plunger) | 85 °C | -40 °C | 227 gf | 1.2 mm | 0.047 in | 0.579 in | 14.7 mm | On-Mom | 0.016 " | 0.4 mm | SPDT | 11 A, 500 mA | 125 V | 10000000 Cycles | 57 gf | Quick Connect - 0.187" (4.7mm) | 125 VDC | |
Honeywell Sensing and Productivity Solutions V7-7H25D8-263-1 | Chassis Mount | 100000 Cycles | 2.03 mm | 0.08 in | Lever, Simulated Roller | 85 °C | -40 °C | 113 gf | 0.125 in | 0.73 in | 18.5 mm | Off-Mom | 0.05 in | 1.3 mm | SPST-NO | 5 A | 125 V | 10000000 Cycles | 14 gf | Quick Connect - 0.187" (4.7mm) | 3.2 mm | ||
Honeywell Sensing and Productivity Solutions V7-7H15D8-263-1 | Chassis Mount | 100000 Cycles | 2.03 mm | 0.08 in | Lever, Simulated Roller | 85 °C | -40 °C | 113 gf | 0.125 in | 0.73 in | 18.5 mm | On-Mom | 0.05 in | 1.3 mm | SPDT | 5 A | 125 V | 10000000 Cycles | 14 gf | Quick Connect - 0.187" (4.7mm) | 3.2 mm | ||
Honeywell Sensing and Productivity Solutions V7-7B37D8C4-732-1 | Chassis Mount | 0.81 mm | 0.032 in | Formed, Lever | 273 gf | 0.602 " | 15.3 mm | On-Mom | 0.012 " | 0.3 mm | SPST-NC | 11 A, 500 mA | 125 V | 45 gf | Quick Connect - 0.187" (4.7mm) | 125 VDC | |||||||
Honeywell Sensing and Productivity Solutions V7-7B39E9-434 | Chassis Mount | 100000 Cycles | 1.7 mm | 0.065 in | Lever, Simulated Roller | 85 °C | -40 °C | 63 gf | 7 mm | 0.275 in | 0.56 in | 14.2 mm | On-Mom | 0.06 " | 1.5 mm | SPST-NC | 11 A, 500 mA | 125 V | 10000000 Cycles | 8 gf | Quick Connect - 0.250" (6.3mm) | 125 VDC | |
Honeywell Sensing and Productivity Solutions V7-7B19E9 | Chassis Mount | 100000 Cycles | 1.27 mm | 0.05 in | Round (Pin Plunger) | 85 °C | -40 °C | 227 gf | 1.2 mm | 0.047 in | 0.579 in | 14.7 mm | On-Mom | 0.01 in | 0.25 mm | SPDT | 11 A, 500 mA | 125 V | 10000000 Cycles | 57 gf | Quick Connect - 0.250" (6.3mm) | 125 VDC | |
Honeywell Sensing and Productivity Solutions V7-7B27D8 | Chassis Mount | 100000 Cycles | 1.27 mm | 0.05 in | Round (Pin Plunger) | 85 °C | -40 °C | 227 gf | 1.2 mm | 0.047 in | 0.579 in | 14.7 mm | Off-Mom | 0.01 in | 0.25 mm | SPST-NO | 11 A, 500 mA | 125 V | 10000000 Cycles | 57 gf | Quick Connect - 0.187" (4.7mm) | 125 VDC | |
Honeywell Sensing and Productivity Solutions V7-7A23E9-000-1 |
