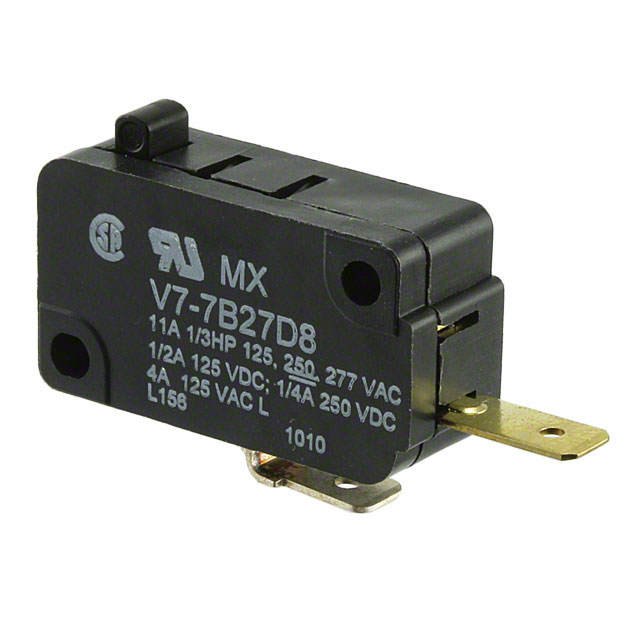

V7-7B27D8

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NO 11A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBasic, Toggle, Rocker Switches Range Guide Datasheet

V7-7B27D8

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NO 11A 125V

Deep-Dive with AI

DocumentsBasic, Toggle, Rocker Switches Range Guide Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

V7-7 Series

Switch SPST-NO Chassis Mount

Documents

Technical documentation and resources

Basic, Toggle, Rocker Switches Range Guide

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	V7-7B27D8	V7-7 Series

	-	-
Actuator Type	Round (Pin Plunger)	Formed, Lever, Round (Pin Plunger), Simulated Roller
Circuit	SPST-NO	SPDT, SPST-NO, SPST-NC
Current Rating (Amps)	11 A, 500 mA	5 - 500 A
Differential Travel	0.25 mm	0.25 - 1.5 mm
Differential Travel	0.01 in	0.01 - 0.06 in
Electrical Life	100000 Cycles	100000 Cycles
Mechanical Life	10000000 Cycles	10000000 Cycles
Mounting Type	Chassis Mount	Chassis Mount
Operating Force	227 gf	63 - 273 gf
Operating Position	0.579 in	0.56 - 0.846 in
Operating Position	14.7 mm	14.2 - 21.5 mm
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	1.27 mm	0.81 - 3.4 mm
Overtravel	0.05 in	0.032 - 0.134 "
Pretravel	0.047 in	0.047 - 0.275 in
Pretravel	1.2 mm	0.125 - 7 mm
Pretravel	-	3.2 mm
Release Force	57 gf	8 - 57 gf
Switch Function	Off-Mom	On-Mom, Off-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm), Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	125 VDC	125 VDC

V7-7 Series

SWITCH SNAP ACTION SPDT 5A 125V

Part	Mounting Type	Electrical Life	Overtravel	Overtravel	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Pretravel	Pretravel	Operating Position	Operating Position	Switch Function	Differential Travel	Differential Travel	Circuit	Current Rating (Amps)	Voltage Rating - AC	Mechanical Life	Release Force	Termination Style	Voltage Rating - DC	Pretravel
Honeywell Sensing and Productivity Solutions V7-7A19D8-374	Chassis Mount	100000 Cycles	1.2 mm	0.047 "	Formed, Lever	85 °C	-40 °C	200 gf	2.05 mm	0.081 in	0.846 in	21.5 mm	On-Mom	0.019 in	0.47 mm	SPDT	5 A	125 V	10000000 Cycles	28 gf	Quick Connect - 0.187" (4.7mm)
Honeywell Sensing and Productivity Solutions V7-7C19D8-640	Chassis Mount	100000 Cycles	3.4 mm	0.134 in		85 °C	-40 °C	64 gf	6.85 mm	0.27 in	0.602 "	15.3 mm	On-Mom	0.06 "	1.5 mm	SPDT	15 A, 500 mA	125 V	10000000 Cycles	8.5 gf	Quick Connect - 0.187" (4.7mm)	125 VDC
Honeywell Sensing and Productivity Solutions V7-7B17D8	Chassis Mount	100000 Cycles	1 mm	0.04 in	Round (Pin Plunger)	85 °C	-40 °C	227 gf	1.2 mm	0.047 in	0.579 in	14.7 mm	On-Mom	0.016 "	0.4 mm	SPDT	11 A, 500 mA	125 V	10000000 Cycles	57 gf	Quick Connect - 0.187" (4.7mm)	125 VDC
Honeywell Sensing and Productivity Solutions V7-7H25D8-263-1	Chassis Mount	100000 Cycles	2.03 mm	0.08 in	Lever, Simulated Roller	85 °C	-40 °C	113 gf	0.125 in		0.73 in	18.5 mm	Off-Mom	0.05 in	1.3 mm	SPST-NO	5 A	125 V	10000000 Cycles	14 gf	Quick Connect - 0.187" (4.7mm)		3.2 mm
Honeywell Sensing and Productivity Solutions V7-7H15D8-263-1	Chassis Mount	100000 Cycles	2.03 mm	0.08 in	Lever, Simulated Roller	85 °C	-40 °C	113 gf	0.125 in		0.73 in	18.5 mm	On-Mom	0.05 in	1.3 mm	SPDT	5 A	125 V	10000000 Cycles	14 gf	Quick Connect - 0.187" (4.7mm)		3.2 mm
Honeywell Sensing and Productivity Solutions V7-7B37D8C4-732-1	Chassis Mount		0.81 mm	0.032 in	Formed, Lever			273 gf			0.602 "	15.3 mm	On-Mom	0.012 "	0.3 mm	SPST-NC	11 A, 500 mA	125 V		45 gf	Quick Connect - 0.187" (4.7mm)	125 VDC
Honeywell Sensing and Productivity Solutions V7-7B39E9-434	Chassis Mount	100000 Cycles	1.7 mm	0.065 in	Lever, Simulated Roller	85 °C	-40 °C	63 gf	7 mm	0.275 in	0.56 in	14.2 mm	On-Mom	0.06 "	1.5 mm	SPST-NC	11 A, 500 mA	125 V	10000000 Cycles	8 gf	Quick Connect - 0.250" (6.3mm)	125 VDC
Honeywell Sensing and Productivity Solutions V7-7B19E9	Chassis Mount	100000 Cycles	1.27 mm	0.05 in	Round (Pin Plunger)	85 °C	-40 °C	227 gf	1.2 mm	0.047 in	0.579 in	14.7 mm	On-Mom	0.01 in	0.25 mm	SPDT	11 A, 500 mA	125 V	10000000 Cycles	57 gf	Quick Connect - 0.250" (6.3mm)	125 VDC
Honeywell Sensing and Productivity Solutions V7-7B27D8	Chassis Mount	100000 Cycles	1.27 mm	0.05 in	Round (Pin Plunger)	85 °C	-40 °C	227 gf	1.2 mm	0.047 in	0.579 in	14.7 mm	Off-Mom	0.01 in	0.25 mm	SPST-NO	11 A, 500 mA	125 V	10000000 Cycles	57 gf	Quick Connect - 0.187" (4.7mm)	125 VDC
Honeywell Sensing and Productivity Solutions V7-7A23E9-000-1
