202110

Obsolete

Amphenol RF

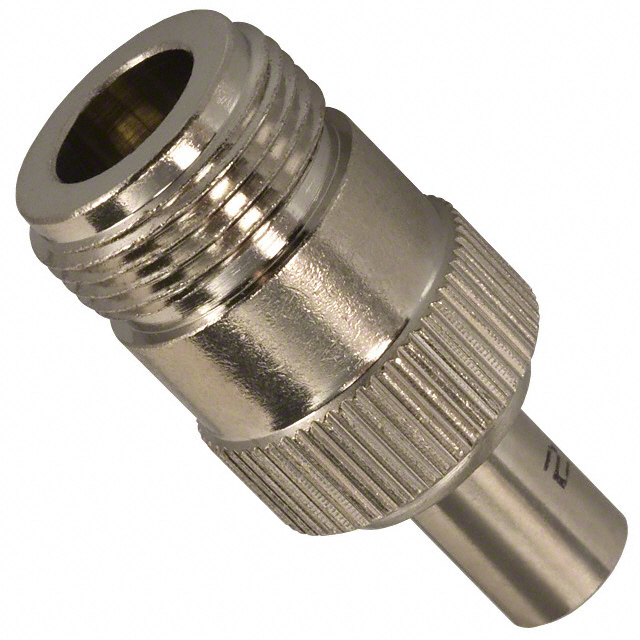

N-TYPE TERMINATOR JACK 1 WATT 5% WITHOUT CHAIN ROHS COMPLIANT: YES

Search across all available documentation for this part.

Obsolete

Amphenol RF

N-TYPE TERMINATOR JACK 1 WATT 5% WITHOUT CHAIN ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	202110

Body Finish	White Bronze
Body Material	Brass
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Finish	Gold
Contact Material	Phosphor Bronze
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Chain
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

Part	Mounting Type	Contact Material	Connector Style	Connector Type	Body Material	Dielectric Material	Body Finish	Contact Finish	Impedance	Frequency - Max [Max]	Accessory Type	Color	Features	For Use With/Related Products
Amphenol RF 202104	Cap Free Hanging	Brass	BNC	Male Pin Plug	Brass	Polytetrafluoroethylene (PTFE)	Nickel	Gold	50 Ohms
Amphenol RF 202119	Cap Free Hanging	Brass	BNC	Male Pin Plug	Brass	Polytetrafluoroethylene (PTFE)	Nickel	Gold	75 Ohms	3 GHz
Amphenol RF 202105	Cap Free Hanging	Brass	BNC	Male Pin Plug	Brass	Polyoxymethylene (POM) Acetal	Nickel	Gold	75 Ohms
Amphenol RF 202109	Cap Free Hanging	Brass	N Type	Male Pin Plug	Brass	Polytetrafluoroethylene (PTFE)	Nickel	Gold	50 Ohms
Amphenol RF 202113	Cap Free Hanging	Brass	BNC	Male Pin Plug	Brass	Polytetrafluoroethylene (PTFE)	Nickel	Gold	50 Ohms
Amphenol RF 202102			N Type		Brass		Nickel				Cap (Cover)	Silver	Chain	N Type Jacks
Amphenol RF 202112			SMA		Brass		Gold				Cap (Cover)	Gold		SMA Jacks
Amphenol RF 202103	Cap Free Hanging	Brass	BNC	Male Pin Plug	Brass	Polyoxymethylene (POM) Acetal	Nickel	Gold	50 Ohms
Amphenol RF 202110	Cap Free Hanging	Phosphor Bronze	N Type	Female Socket Jack	Brass	Polytetrafluoroethylene (PTFE)	White Bronze	Gold	50 Ohms				Chain

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminator Coax Connector Jack, Female Socket N Type 50 Ohms
