C0PPG-2436G

Active

CW Industries

DIP CABLE - CDP24G/AE24G/CDP24G

Search across all available documentation for this part.

Active

CW Industries

DIP CABLE - CDP24G/AE24G/CDP24G

Technical Specifications

Parameters and characteristics commom to parts in this series

DIP CABLE - CDP24G/AE24M/CDP24G

Part	Color	Pitch - Connector	Pitch - Connector	Cable Termination	Number of Positions	Usage	Connector Type	Pitch - Cable	Pitch - Cable	Shielding	Contact Finish Thickness	Contact Finish Thickness	Length	Length	Length	Contact Finish	Number of Rows	Length [x]	Length [x]
CW Industries C0PPG-2406M	Multiple, Ribbon	0.1 in	2.54 mm	IDC	24	Board In, Socket (0.6")	DIP to DIP, Reversed	0.05 "	1.27 mm	Unshielded	10 Áin	0.25 Ám	152.4 mm	6 "	0.5 '	Gold	2
CW Industries C0PPG-2406G		0.1 in	2.54 mm	IDC	24	Board In, Socket (0.6")	DIP to DIP, Reversed	0.05 "	1.27 mm	Unshielded	10 Áin	0.25 Ám	152.4 mm	6 "	0.5 '	Gold	2
CW Industries C0PPG-2436G		0.1 in	2.54 mm	IDC	24	Board In, Socket (0.6")	DIP to DIP, Reversed	0.05 "	1.27 mm	Unshielded	10 Áin	0.25 Ám				Gold	2	3 ft	914.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

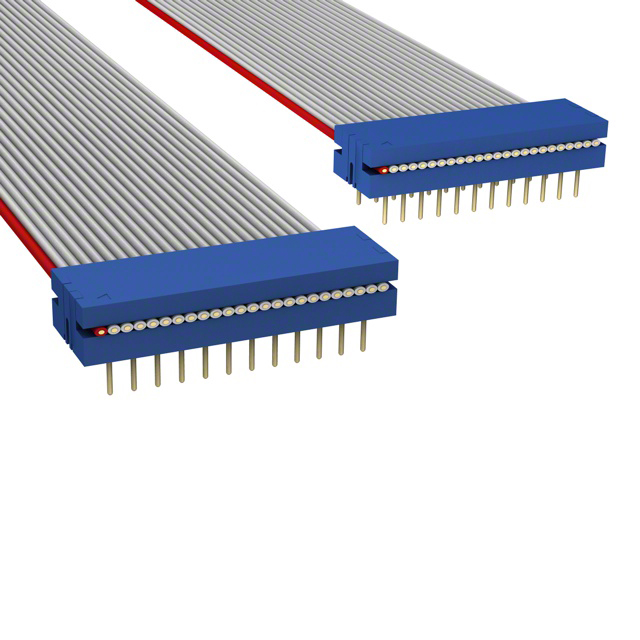

24 Position Cable Assembly Rectangular DIP to DIP, Reversed 3.00' (914.40mm)
