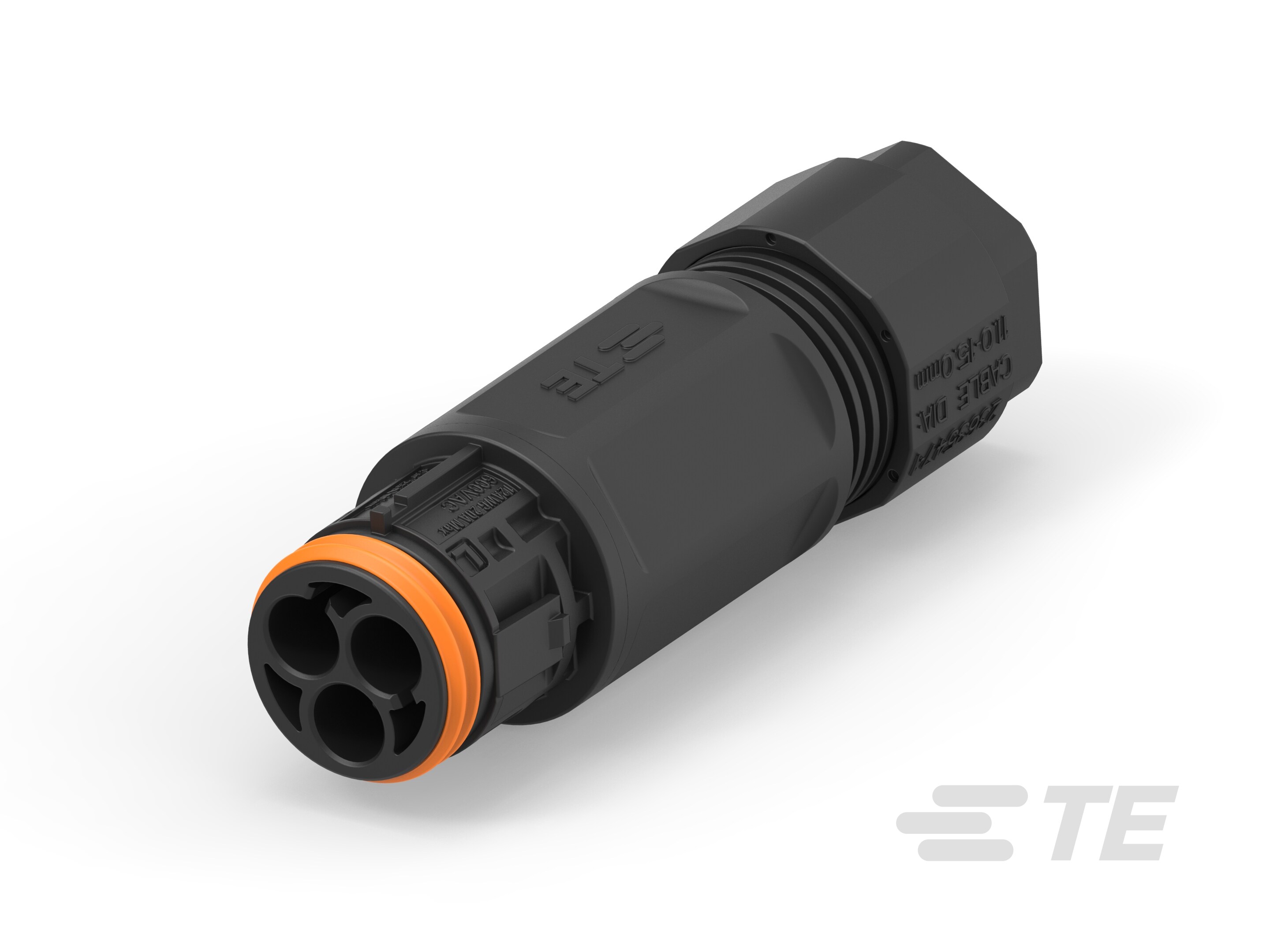

2379238-2
ActiveTE Connectivity AMP Connectors
NECTOR T IN-LINE PIN ASSY + BACK
2379238-2
ActiveTE Connectivity AMP Connectors
NECTOR T IN-LINE PIN ASSY + BACK
Description
General part information
2379238 Series
3 (Power) Position Circular Connector Receptacle, Male Pins Screw
Technical Specifications
Parameters and characteristics for this part
| Specification | 2379238-2 |
|---|---|
| Applications | Lighting |
| Backshell Material, Plating | Polycarbonate (PC), Polybutylene Terephthalate (PBT) |
| Cable Opening (Max) | 0.591 in |
| Cable Opening (Min) | 0.413 in |
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Tin |
| Contact Material | Copper Alloy |
| Current Rating Options | 25A, 20A |
| Fastening Type | Latch Lock, Push-Pull |
| Features | Backshell |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP68, IP67 |
| Insert Material | Polybutylene Terephthalate, PBT, PC, Polycarbonate |
| Material Flammability Rating | UL94 V-0, UL94 HF-1 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | B |
| Position Types | Power |
| Primary Material | Plastic |
| Shell Material | Polycarbonate (PC), Polybutylene Terephthalate (PBT) |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 600 V |
