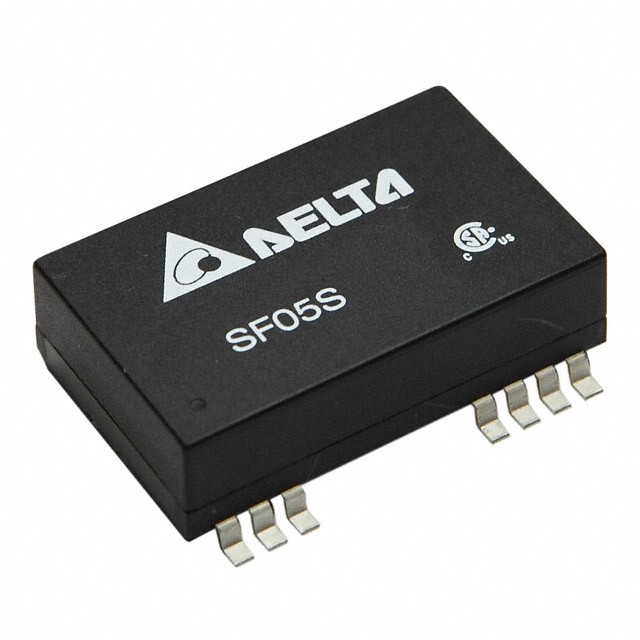

SF05D2412A

Obsolete

Delta Electronics

DC DC CONVERTER +/-12V 5W

Search across all available documentation for this part.

Obsolete

Delta Electronics

DC DC CONVERTER +/-12V 5W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER +/-5V 5W

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 2	Voltage - Output 1	Power (Watts)	Efficiency	Type	Mounting Type	Number of Outputs	Current - Output (Max)	Current - Output (Max)	Control Features	Voltage - Isolation	Features	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Current - Output (Max)
Delta Electronics SF05D1205A	-40 °C	71 °C	-5 V	5 V	5 W	80 %	Isolated Module	Surface Mount	2	500 mA	500 mA	Active High, Enable	1.5 kV	OCP, Remote On/Off, SCP, UVLO	9 V	18 V	Medical	1.31 in	10.2 mm	1.01 in	0.1 "	33.4 mm	25.6 mm	24-SMD Module, 12 Leads
Delta Electronics SF05D2412A	-40 °C	71 °C	-12 V	12 V	5 W	85 %	Isolated Module	Surface Mount	2	208 mA		Active High, Enable	1.5 kV	OCP, Remote On/Off, SCP, UVLO	18 V	36 V	Medical	1.31 in	10.2 mm	1.01 in	0.1 "	33.4 mm	25.6 mm	24-SMD Module, 12 Leads	208 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 12V -12V 208mA, 208mA 18V - 36V Input
