SFMH-105-02-L-D-LC

Active

Samtec Inc.

CONN SOCKET STRIP SKT 10 POS 0.64MM SOLDER RA SIDE ENTRY SMD TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SFMH-105-02-F-D-LC Datasheet 02 +1

SFMH-105-02-L-D-LC

Active

Samtec Inc.

CONN SOCKET STRIP SKT 10 POS 0.64MM SOLDER RA SIDE ENTRY SMD TUBE

Deep-Dive with AI

DocumentsDatasheet SFMH-105-02-F-D-LC Datasheet 02 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFMH-105-02-L-D-LC

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	Flash
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.43 mm
Insulation Height	0.135 "
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Termination	Solder

SFMH-105 Series

Part	Contact Finish - Mating	Mounting Type	Insulation Material	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Number of Rows	Contact Finish - Post	Fastening Type	Number of Positions	Termination	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Contact Type	Number of Positions Loaded	Connector Type	Contact Finish Thickness - Post	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Current Rating (Amps)	Features
Samtec Inc. SFMH-105-02-L-D-LC	Gold	Surface Mount Right Angle	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	Square	2	Gold	Push-Pull	10	Solder	UL94 V-0	0.05 in	1.27 mm	Phosphor Bronze	Female Socket	All	Receptacle	Flash	Black	10 çin	0.25 çm	3.43 mm	0.135 "
Samtec Inc. SFMH-105-02-L-D-TR	Gold	Surface Mount Right Angle	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	Square	2	Gold	Push-Pull	10	Solder	UL94 V-0	0.05 in	1.27 mm	Phosphor Bronze	Female Socket	All	Receptacle	Flash	Black	10 çin	0.25 çm	3.43 mm	0.135 "
Samtec Inc. SFMH-105-02-LM-D	Gold	Surface Mount Right Angle	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	Square	2	Tin	Push-Pull	10	Solder	UL94 V-0	0.05 in	1.27 mm	Phosphor Bronze	Female Socket	All	Receptacle		Black	10 çin	0.25 çm	3.43 mm	0.135 "	2.6 A
Samtec Inc. SFMH-105-02-L-D-WT	Gold	Surface Mount Right Angle	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	Square	2	Gold	Push-Pull	10	Solder	UL94 V-0	0.05 in	1.27 mm	Phosphor Bronze	Female Socket	All	Receptacle	Flash	Black	10 çin	0.25 çm	3.43 mm	0.135 "		Solder Retention
Samtec Inc. SFMH-105-02-STL-D-LC		Surface Mount Right Angle	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	Square	2		Push-Pull	10	Solder	UL94 V-0	0.05 in	1.27 mm	Phosphor Bronze	Female Socket	All	Receptacle		Black			3.43 mm	0.135 "	2.6 A
Samtec Inc. SFMH-105-02-LM-D-WT-TR	Gold	Surface Mount Right Angle	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	-55 °C	125 °C	Square	2	Tin	Push-Pull	10	Solder	UL94 V-0	0.05 in	1.27 mm	Phosphor Bronze	Female Socket	All	Receptacle		Black	10 çin	0.25 çm	3.43 mm	0.135 "	2.6 A	Solder Retention

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 5.21
		25	$ 4.71
		50	$ 4.38
		100	$ 4.17
		500	$ 3.24
		1000	$ 2.94
		2500	$ 2.32
Digikey	Tube	1	$ 5.21
		25	$ 4.71
		50	$ 4.38
		100	$ 4.17
		500	$ 3.90

Description

General part information

SFMH-105 Series

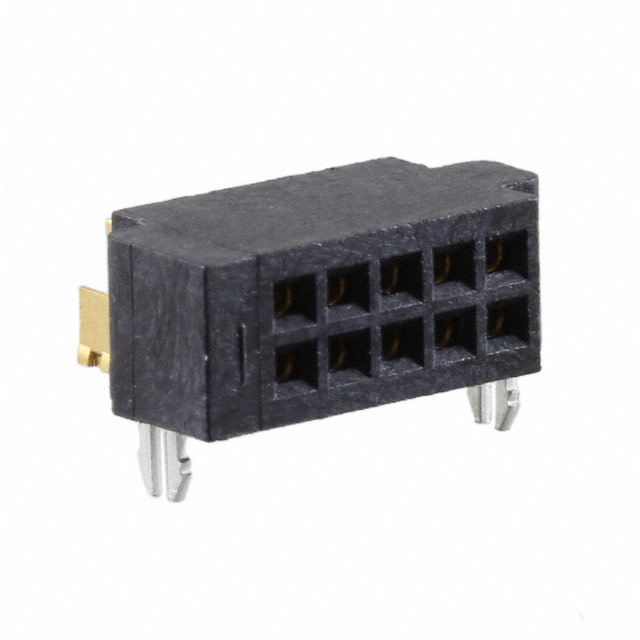

10 Position Receptacle Connector 0.050" (1.27mm) Surface Mount, Right Angle Gold

SFMH-105-02-L-D-LC

Deep-Dive with AI

SFMH-105-02-L-D-LC

Deep-Dive with AI

Technical Specifications

SFMH-105 Series

Pricing

Description

SFMH-105 Series

Documents

Datasheet

SFMH-105-02-F-D-LC Datasheet 02

.050" Tiger Eye™ High-Reliability Socket Strip, Horizontal Mount

SFMH-105 Series
