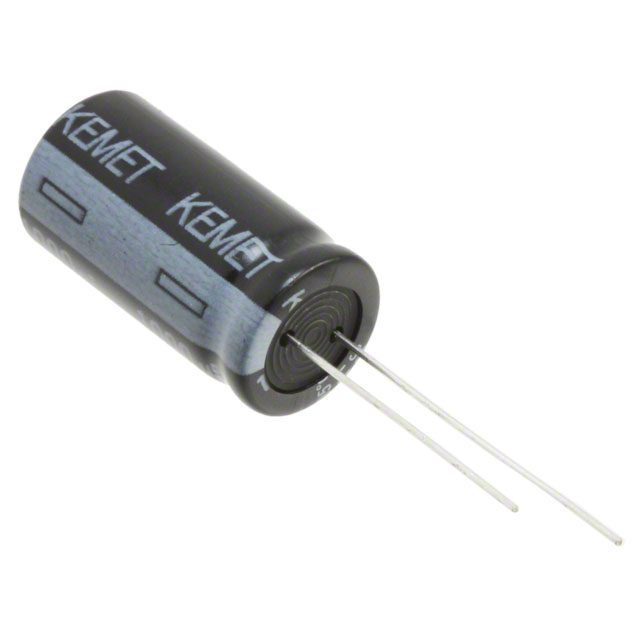

ESY108M035AL4AA

Active

KEMET

ELECTROLYTIC CAPACITOR, 1000 ΜF, 35 V, ± 20%, PC PIN, 5000 HOURS @ 105°C, POLAR

Search across all available documentation for this part.

Active

KEMET

ELECTROLYTIC CAPACITOR, 1000 ΜF, 35 V, ± 20%, PC PIN, 5000 HOURS @ 105°C, POLAR

Technical Specifications

Parameters and characteristics for this part

Specification	ESY108M035AL4AA

Applications	General Purpose
Capacitance	1000 µF
ESR (Equivalent Series Resistance)	18 mOhm
Height - Seated (Max) [Max] [z]	1.063 in
Height - Seated (Max) [Max] [z]	27 mm
Impedance	18 mOhms
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	5000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	2.77 A
Ripple Current @ Low Frequency	2.0775 A
Size / Dimension [diameter]	0.512 in
Size / Dimension [diameter]	13 mm
Tolerance	20 %
Voltage - Rated	35 V

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Voltage - Rated	Tolerance	ESR (Equivalent Series Resistance)	Polarization	Ripple Current @ Low Frequency	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lifetime @ Temp.	Mounting Type	Applications	Impedance
KEMET ESY108M035AL4AA	0.512 in	13 mm	-40 °C	105 ░C	Radial Can	2.77 A	5 mm	0.197 in	35 V	20 %	18 mOhm	Polar	2.0775 A	1000 µF	1.063 in	27 mm	5000 Hrs	Through Hole	General Purpose	18 mOhms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1000 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 18mOhm @ 100kHz 5000 Hrs @ 105°C
