56.OA11.1122N

Active

Altech Corporation

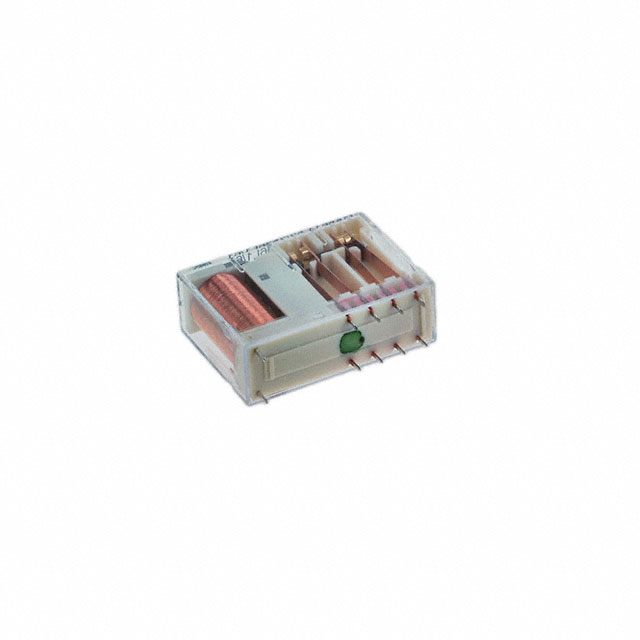

RELAY SAFETY 4PST 8A 110V

Search across all available documentation for this part.

Active

Altech Corporation

RELAY SAFETY 4PST 8A 110V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	56.OA11.1122N	56.OA11 Series

	-	-
Coil Current	5.5 mA	5.5 - 107 mA
Coil Power	-	600 - 643 mW
Coil Resistance	20.15 kOhms	20.15 - 960 Ohms
Coil Voltage	110 VDC	24 - 110 VDC
Contact Form	4PST-2NO/2NC (2 Form A, 2 Form B)	4PST-3NO/1NC (3 Form A, 1 Form B), 4PST-2NO/2NC (2 Form A, 2 Form B)
Contact Material	Silver Nickel (AgNi), Gold (Au)	Silver Nickel (AgNi), Gold (Au), Silver Tin Oxide (AgSnO)
Contact Rating (Current)	8 A	8 A
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	77 VDC	4.2 - 77 VDC
Operate Time	20 ms	20 ms
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Release Time	6 ms	6 ms
Switching Voltage [Max]	250 VDC, 400 VAC	250 - 400 VDC
Termination Style	PC Pin	PC Pin

OA561124V 2NO/2NC AGNI10+5UMAU I

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY SAFETY 4PST 8A 110V
