FF1800R12IE5PBPSA1

Active

Infineon Technologies

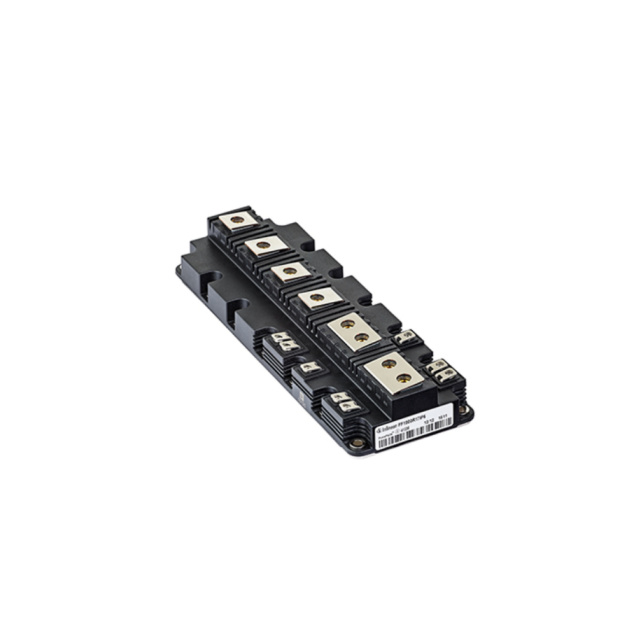

THE FF1800R12IE5P IS A DUAL IGBT5 - E5 MODULE IN A PRIMEPACK™ 3+ HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 1800 A.

Deep-Dive with AI

Search across all available documentation for this part.

FF1800R12IE5PBPSA1

Active

Infineon Technologies

THE FF1800R12IE5P IS A DUAL IGBT5 - E5 MODULE IN A PRIMEPACK™ 3+ HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 1800 A.

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FF1800R12IE5PBPSA1

Configuration	2 Independent
Current - Collector (Ic) (Max) [Max]	1800 A
Current - Collector Cutoff (Max) [Max]	5 mA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	98.5 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	175 °C
Operating Temperature [Min]	-40 C
Package / Case	Module
Power - Max [Max]	20 mW
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	2.15 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

FF1800 Series

Part	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	Input	Supplier Device Package	NTC Thermistor	Operating Temperature [Min]	Operating Temperature [Max]	Current - Collector Cutoff (Max) [Max]	IGBT Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Vce(on) (Max) @ Vge, Ic	Package / Case	Input Capacitance (Cies) @ Vce	Configuration
Infineon Technologies FF1800R12IE5PBPSA1	1800 A	20 mW	Standard	Module		-40 C	175 °C	5 mA	Trench Field Stop	1200 V	Chassis Mount	2.15 V	Module	98.5 nF	2 Independent

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 891.65
Newark	Each	1	$ 927.32
		6	$ 927.32
		12	$ 927.31
		27	$ 927.31

Description

General part information

FF1800 Series

PrimePACK™3+ 1200 V, 1800 A dualIGBT modulewith TRENCHSTOP™ IGBT5 and .XT soft switching interconnection technology, Emitter Controlled diode, NTC and pre-appliedThermal Interface Material.
