112740-13

Active

Amphenol RF

CONN BNC RCPT STR 75OHM EDGE MNT

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC RCPT STR 75OHM EDGE MNT

Technical Specifications

Parameters and characteristics for this part

Specification	112740-13

Body Finish	Gold
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	75 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Panel Mount, End Launch, Board Edge
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Voltage Rating	Center Contact Material	Number of Ports	Connector Type	Contact Termination	Frequency - Max [Max]	Insertion Loss	Fastening Type	Mounting Type	Includes	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Dielectric Material	Center Contact Plating	Connector Style	Mounting Feature	Impedance	Mating Cycles	Body Finish	Body Material
Amphenol RF 112740-13	500 V	Phosphor Bronze	1	Female Socket Jack	Solder	4 GHz	0.2 dB	Bayonet Lock	Board Edge End Launch Panel Mount	1 Connector 1 Lockwasher 1 Nut	Gold	-65 ░C	165 °C	Solder	Polytetrafluoroethylene (PTFE)	Gold	BNC	Bulkhead - Front Side Nut	75 Ohms	500	Gold	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

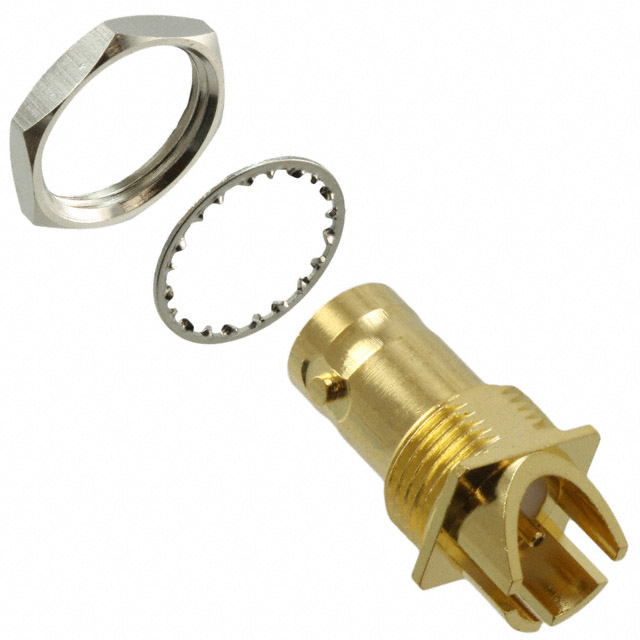

BNC Connector Jack, Female Socket 75 Ohms Board Edge, End Launch; Panel Mount Solder
