SI824XCLASSD-KIT

Obsolete

Skyworks Solutions Inc.

DEVELOPMENT BOARDS &AMP; KITS ROHS

Search across all available documentation for this part.

Obsolete

Skyworks Solutions Inc.

DEVELOPMENT BOARDS &AMP; KITS ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	SI824XCLASSD-KIT

Board Type	Fully Populated
Max Output Power x Channels @ Load	120 W
Max Output Power x Channels @ Load [custom]	8 Ohm
Max Output Power x Channels @ Load [x]	2
Output Type	2-Channel (Stereo)
Supplied Contents	Board(s)
Utilized IC / Part	Si824x

Part	Function	Number of Channels [custom]	Mounting Type	Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case [x]	Package / Case [y]	Supplier Device Package	Specifications	Utilized IC / Part	Output Type	Supplied Contents	Board Type	Max Output Power x Channels @ Load	Max Output Power x Channels @ Load [x]	Max Output Power x Channels @ Load [custom]
Skyworks Solutions Inc. SI8244CB-C-IS1	Line Driver	2	Surface Mount	Analog	4.5 V	5.5 V	-40 °C	125 °C	16-SOIC	0.154 in	3.9 mm	16-SOIC	Class D
Skyworks Solutions Inc. SI8241CB-B-IS1	Line Driver	2	Surface Mount	Analog	4.5 V	5.5 V	-40 °C	125 °C	16-SOIC	0.154 in	3.9 mm	16-SOIC	Class D
Skyworks Solutions Inc. SI8241BB-B-IS1	Line Driver	2	Surface Mount	Analog	4.5 V	5.5 V	-40 °C	125 °C	16-SOIC	0.154 in	3.9 mm	16-SOIC	Class D
Skyworks Solutions Inc. SI8244CB-C-IS1R	Line Driver	2	Surface Mount	Analog	4.5 V	5.5 V	-40 °C	125 °C	16-SOIC	0.154 in	3.9 mm	16-SOIC	Class D
Skyworks Solutions Inc. SI8244BB-C-IS1	Line Driver	2	Surface Mount	Analog	4.5 V	5.5 V	-40 °C	125 °C	16-SOIC	0.154 in	3.9 mm	16-SOIC	Class D
Skyworks Solutions Inc. SI824XCLASSD-KIT														Si824x	2-Channel (Stereo)	Board(s)	Fully Populated	120 W	2	8 Ohm
Skyworks Solutions Inc. SI8241BB-B-IS1R	Line Driver	2	Surface Mount	Analog	4.5 V	5.5 V	-40 °C	125 °C	16-SOIC	0.154 in	3.9 mm	16-SOIC	Class D

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 246.00
LCSC	Piece	1	$ 209.53

General part information

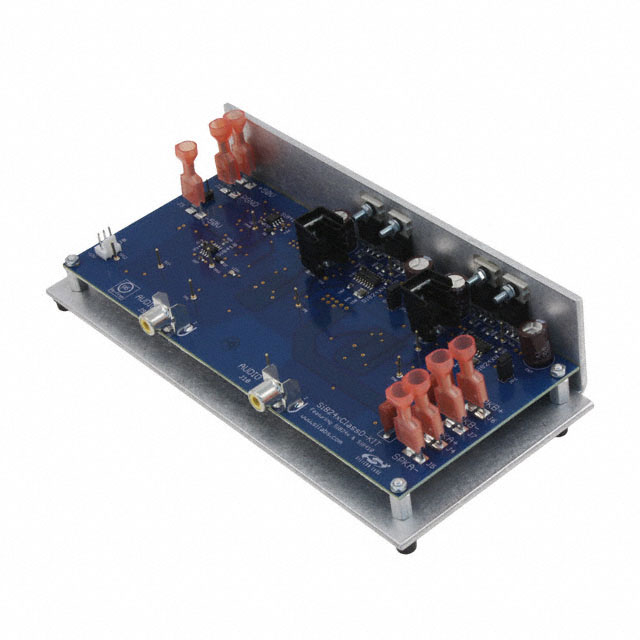

Si824x - 2-Channel (Stereo) Output Class D Audio Amplifier Evaluation Board
