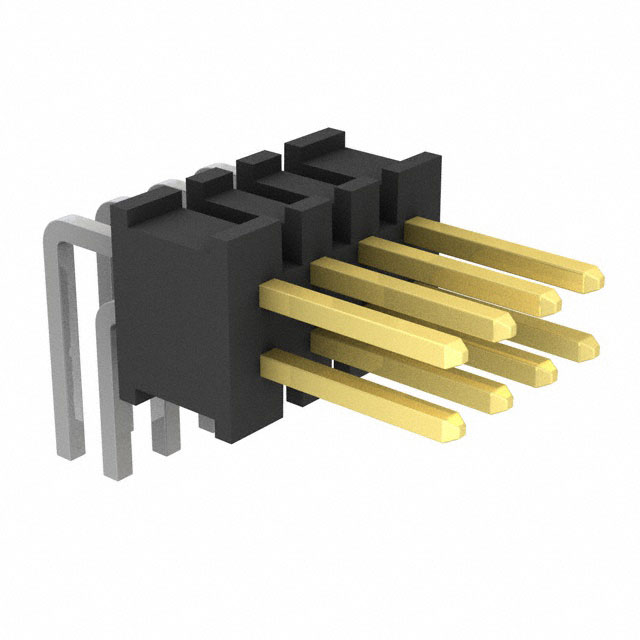

FTSH-104-02-F-D-RA

Active

Samtec Inc.

CONN UNSHROUDED HEADER HDR 8 POS 1.27MM SOLDER RA SIDE ENTRY THRU-HOLE TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet FTSH Series Other Related Documents 01 +1

FTSH-104-02-F-D-RA

Active

Samtec Inc.

CONN UNSHROUDED HEADER HDR 8 POS 1.27MM SOLDER RA SIDE ENTRY THRU-HOLE TUBE

Deep-Dive with AI

DocumentsDatasheet FTSH Series Other Related Documents 01 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FTSH-104-02-F-D-RA

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Mating [x]	1.9 mm
Contact Length - Mating [x]	0.075 in
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.43 mm
Insulation Height	0.135 "
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

FTSH-104 Series

...

Part	Shrouding	Contact Finish - Post	Mounting Type	Connector Type	Insulation Material	Contact Length - Mating [x]	Contact Length - Mating [x]	Style	Fastening Type	Termination	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Contact Shape	Insulation Height	Insulation Height	Contact Finish - Mating	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Material Flammability Rating	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Features	Contact Length - Mating	Contact Length - Mating
Samtec Inc. FTSH-104-02-L-D	Unshrouded	Tin	Through Hole	Cuttable Header	Liquid Crystal Polymer (LCP)	1.9 mm	0.075 in	Board to Board Cable	Push-Pull	Solder	0.05 in	1.27 mm	0.09 "	2.29 mm	Square	2.51 mm	0.099 in	Gold	Black	0.05 in	1.27 mm	2	-55 °C	125 °C	Male Pin	8	10 çin	0.25 çm	Phosphor Bronze	UL94 V-0	6.73 mm	0.265 in	All
Samtec Inc. FTSH-104-04-FM-DV-P-TR	Unshrouded	Tin	Surface Mount	Cuttable Header	Liquid Crystal Polymer (LCP)			Board to Board Cable	Push-Pull	Solder	0.05 in	1.27 mm			Square	2.51 mm	0.099 in	Gold	Black	0.05 in	1.27 mm	2	-55 °C	125 °C	Male Pin	8	3 µin	0.076 µm	Phosphor Bronze	UL94 V-0			All	Pick and Place	0.15 in	3.81 mm
Samtec Inc. FTSH-104-04-L-DH-TR	Unshrouded	Tin	Surface Mount Right Angle	Cuttable Header	Liquid Crystal Polymer (LCP)			Board to Board Cable	Push-Pull	Solder	0.05 in	1.27 mm			Square	3.43 mm	0.135 "	Gold	Black	0.05 in	1.27 mm	2	-55 °C	125 °C	Male Pin	8	10 çin	0.25 çm	Phosphor Bronze	UL94 V-0			All		0.15 in	3.81 mm
Samtec Inc. FTSH-104-02-L-DH-TR	Unshrouded	Tin	Surface Mount Right Angle	Cuttable Header	Liquid Crystal Polymer (LCP)	1.9 mm	0.075 in	Board to Board Cable	Push-Pull	Solder	0.05 in	1.27 mm			Square	3.43 mm	0.135 "	Gold	Black	0.05 in	1.27 mm	2	-55 °C	125 °C	Male Pin	8	10 çin	0.25 çm	Phosphor Bronze	UL94 V-0			All
Samtec Inc. FTSH-104-02-F-D-RA	Unshrouded	Tin	Through Hole Right Angle	Cuttable Header	Liquid Crystal Polymer (LCP)	1.9 mm	0.075 in	Board to Board Cable	Push-Pull	Solder	0.05 in	1.27 mm	0.09 "	2.29 mm	Square	3.43 mm	0.135 "	Gold	Black	0.05 in	1.27 mm	2	-55 °C	125 °C	Male Pin	8	3 µin	0.076 µm	Phosphor Bronze	UL94 V-0			All
Samtec Inc. FTSH-104-01-F-MT-TR	Unshrouded	Tin	Surface Mount Right Angle Through Hole	Cuttable Header	Liquid Crystal Polymer (LCP)			Board to Board Cable	Push-Pull	Solder	0.05 in	1.27 mm	0.09 "	2.29 mm	Square	3.43 mm	0.135 "	Gold	Black	0.05 in	1.27 mm	2	-55 °C	125 °C	Male Pin	8	3 µin	0.076 µm	Phosphor Bronze	UL94 V-0			All		0.12 in	3.05 mm
Samtec Inc. FTSH-104-02-L-DV-P	Unshrouded	Tin	Surface Mount	Cuttable Header	Liquid Crystal Polymer (LCP)	1.9 mm	0.075 in	Board to Board Cable	Push-Pull	Solder	0.05 in	1.27 mm			Square	2.51 mm	0.099 in	Gold	Black	0.05 in	1.27 mm	2	-55 °C	125 °C	Male Pin	8	10 çin	0.25 çm	Phosphor Bronze	UL94 V-0			All	Pick and Place
Samtec Inc. FTSH-104-05-F-DV-P-TR	Unshrouded	Tin	Surface Mount	Cuttable Header	Liquid Crystal Polymer (LCP)			Board to Board Cable	Push-Pull	Solder	0.05 in	1.27 mm			Square	2.51 mm	0.099 in	Gold	Black	0.05 in	1.27 mm	2	-55 °C	125 °C	Male Pin	8	3 µin	0.076 µm	Phosphor Bronze	UL94 V-0			All	Pick and Place	0.17 in	4.32 mm
Samtec Inc. FTSH-104-05-F-DV	Unshrouded	Tin	Surface Mount	Cuttable Header	Liquid Crystal Polymer (LCP)			Board to Board Cable	Push-Pull	Solder	0.05 in	1.27 mm			Square	2.51 mm	0.099 in	Gold	Black	0.05 in	1.27 mm	2	-55 °C	125 °C	Male Pin	8	3 µin	0.076 µm	Phosphor Bronze	UL94 V-0			All		0.17 in	4.32 mm
Samtec Inc. FTSH-104-04-F-MT	Unshrouded	Tin	Surface Mount Right Angle Through Hole	Cuttable Header	Liquid Crystal Polymer (LCP)			Board to Board Cable	Push-Pull	Solder	0.05 in	1.27 mm	0.09 "	2.29 mm	Square	3.43 mm	0.135 "	Gold	Black	0.05 in	1.27 mm	2	-55 °C	125 °C	Male Pin	8	3 µin	0.076 µm	Phosphor Bronze	UL94 V-0			All		0.15 in	3.81 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 1.74
		50	$ 1.43
		100	$ 1.17
Digikey	Tube	113	$ 1.17
