325321-14-0
ActiveCurtis Industries

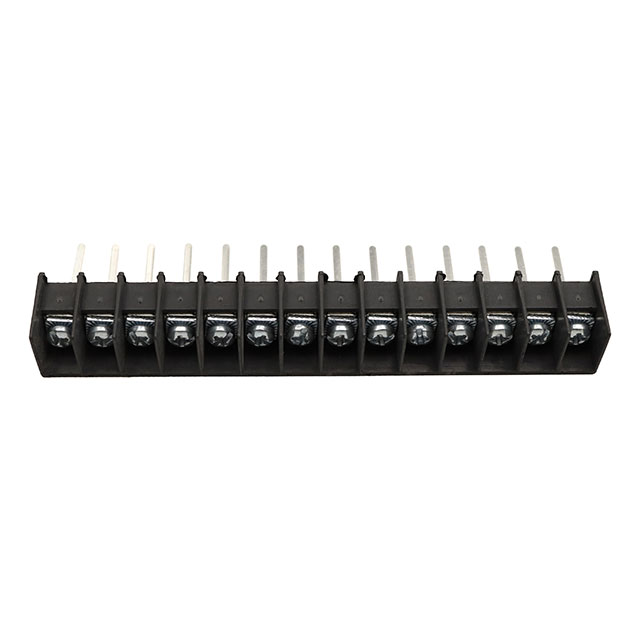

CONN BARRIER STRP 14CIRC 0.325"
Deep-Dive with AI
Search across all available documentation for this part.
325321-14-0
ActiveCurtis Industries
CONN BARRIER STRP 14CIRC 0.325"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 325321-14-0 | 325321 Series |
|---|---|---|
| Barrier Type | 3 Wall (Tri) | 3 Wall (Tri) |
| Bottom Termination | Wire Wrap | Wire Wrap |
| Current Rating (Amps) | 15 A | 15 A |
| Material - Insulation | Polypropylene (PP) | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Circuits | 14 | 2 - 22 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 14 | 2 - 19 |
| Number of Wire Entries | - | 22 |
| Operating Temperature | 105 C | 105 C |
| Pitch [x] | 8.26 mm | 8.26 mm |
| Pitch [x] | 0.325 in | 0.325 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Top Termination | Screws | Screws |
| Voltage Rating | 300 VDC | 300 VDC |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 14 AWG | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.25 | |
| 10 | $ 5.36 | |||
| 30 | $ 5.11 | |||
| 50 | $ 4.79 | |||
325321 Series
CONN BARRIER STRIP 7CIRC 0.325"
| Part | Voltage Rating | Top Termination | Current Rating (Amps) | Number of Rows | Number of Wire Entries | Mounting Type | Material - Insulation | Bottom Termination | Material Flammability Rating | Pitch [x] | Pitch [x] | Barrier Type | Wire Gauge [Min] | Wire Gauge [Max] | Number of Circuits | Operating Temperature | Terminal Block Type | Number of Wire Entries [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries 325321-07-0 | 300 VDC | Screws | 15 A | 1 | 7 | Through Hole | Polypropylene (PP) | Wire Wrap | UL94 V-0 | 8.26 mm | 0.325 in | 3 Wall (Tri) | 14 AWG | 22 AWG | 7 | 105 C | Barrier Block | |
Curtis Industries 325321-17-0 | 300 VDC | Screws | 15 A | 1 | 17 | Through Hole | Polypropylene (PP) | Wire Wrap | UL94 V-0 | 8.26 mm | 0.325 in | 3 Wall (Tri) | 14 AWG | 22 AWG | 17 | 105 C | Barrier Block | |
Curtis Industries 325321-13-0 | 300 VDC | Screws | 15 A | 1 | 13 | Through Hole | Polypropylene (PP) | Wire Wrap | UL94 V-0 | 8.26 mm | 0.325 in | 3 Wall (Tri) | 14 AWG | 22 AWG | 13 | 105 C | Barrier Block | |
Curtis Industries 325321-22-0 | 300 VDC | Screws | 15 A | 1 | Through Hole | Polypropylene (PP) | Wire Wrap | UL94 V-0 | 8.26 mm | 0.325 in | 3 Wall (Tri) | 14 AWG | 22 AWG | 22 | 105 C | Barrier Block | 22 | |
Curtis Industries 325321-03-0 | 300 VDC | Screws | 15 A | 1 | 3 | Through Hole | Polypropylene (PP) | Wire Wrap | UL94 V-0 | 8.26 mm | 0.325 in | 3 Wall (Tri) | 14 AWG | 22 AWG | 3 | 105 C | Barrier Block | |
Curtis Industries 325321-19-0 | 300 VDC | Screws | 15 A | 1 | 19 | Through Hole | Polypropylene (PP) | Wire Wrap | UL94 V-0 | 8.26 mm | 0.325 in | 3 Wall (Tri) | 14 AWG | 22 AWG | 19 | 105 C | Barrier Block | |
Curtis Industries 325321-14-0 | 300 VDC | Screws | 15 A | 1 | 14 | Through Hole | Polypropylene (PP) | Wire Wrap | UL94 V-0 | 8.26 mm | 0.325 in | 3 Wall (Tri) | 14 AWG | 22 AWG | 14 | 105 C | Barrier Block | |
Curtis Industries 325321-04-0 | 300 VDC | Screws | 15 A | 1 | 4 | Through Hole | Polypropylene (PP) | Wire Wrap | UL94 V-0 | 8.26 mm | 0.325 in | 3 Wall (Tri) | 14 AWG | 22 AWG | 4 | 105 C | Barrier Block | |
Curtis Industries 325321-09-0 | 300 VDC | Screws | 15 A | 1 | 9 | Through Hole | Polypropylene (PP) | Wire Wrap | UL94 V-0 | 8.26 mm | 0.325 in | 3 Wall (Tri) | 14 AWG | 22 AWG | 105 C | Barrier Block | ||
Curtis Industries 325321-10-0 | 300 VDC | Screws | 15 A | 1 | 10 | Through Hole | Polypropylene (PP) | Wire Wrap | UL94 V-0 | 8.26 mm | 0.325 in | 3 Wall (Tri) | 14 AWG | 22 AWG | 10 | 105 C | Barrier Block |
Description
General part information
325321 Series
14 Circuit 0.325" (8.26mm) Barrier Block Connector Screws
