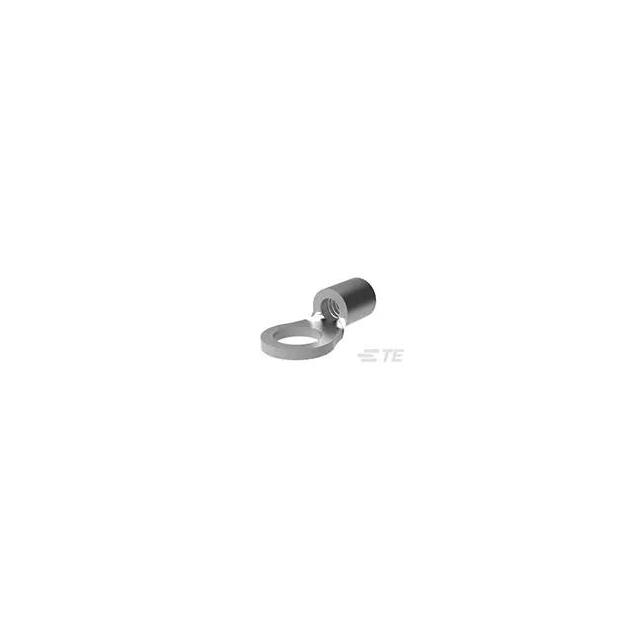

1377172-9

Active

TE CONNECTIVITY

SMP 0-0034124-0

Search across all available documentation for this part.

Active

TE CONNECTIVITY

SMP 0-0034124-0

Technical Specifications

Parameters and characteristics for this part

Specification	1377172-9

Contact Finish	Tin
Contact Material	Copper
Features	Brazed Seam, Serrated Termination
Insulation	Non-Insulated
Length - Overall	0.855 in
Length - Overall	21.72 mm
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	0.25 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.031 in
Thickness	0.79 mm
Width - Outer Edges [y]	11.91 mm
Width - Outer Edges [y]	0.469 in

SMP 0-0034124-0

Part	Contact Material	Width - Outer Edges [y]	Width - Outer Edges [y]	Length - Overall	Length - Overall	Insulation	Stud/Tab Size	Contact Finish	Mounting Type	Features	Terminal Type	Thickness	Thickness	Termination
TE CONNECTIVITY 1377172-9	Copper	11.91 mm	0.469 in	0.855 in	21.72 mm	Non-Insulated	0.25 Stud	Tin	Free Hanging (In-Line)	Brazed Seam, Serrated Termination	Circular	0.031 in	0.79 mm	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ring Terminal Connector 1/4 Stud Circular 14-16 AWG Crimp
