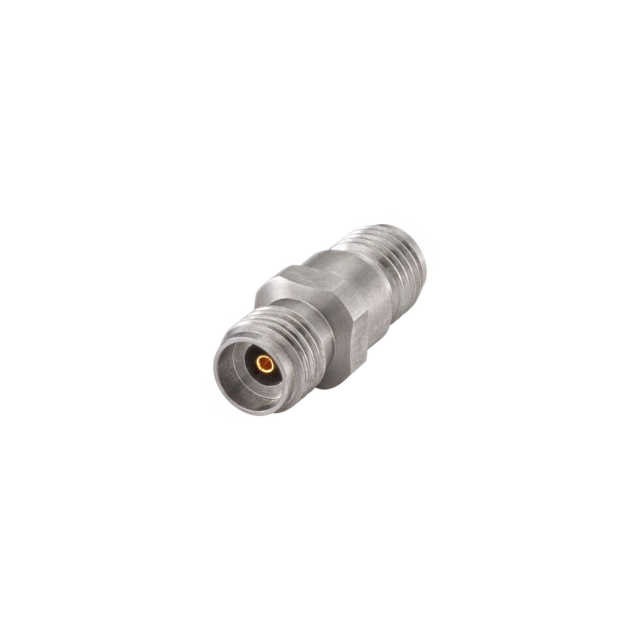

02K121-K20S3

Active

Rosenberger

PRECISION 2.92 CALIBRATION ADAPT

Search across all available documentation for this part.

Active

Rosenberger

PRECISION 2.92 CALIBRATION ADAPT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	02K121-K20S3	02K121 Series

Accessory Type	Calibration Adapter	Calibration Adapter
Adapter Series	-	RPC-2.92 to RPC-2.92
Adapter Type	-	Jack to Jack
Body Material	-	Stainless Steel
Center Contact Material	-	Beryllium Copper
Center Contact Plating	-	Gold
Center Gender	-	Female to Female
Conversion Type	-	Same Series
Convert From (Adapter End)	-	2.92 mm
Convert From (Adapter End)	-	OS-2.9, Jack, Female Socket
Convert To (Adapter End)	-	2.92 mm
Convert To (Adapter End)	-	OS-2.9 Jack, Female Socket
Dielectric Material	-	Polystyrene (PS)
For Use With/Related Products	Network Analyzer	Network Analyzer
Frequency - Max	-	40 GHz
Impedance	-	50 Ohms
Mating Cycles	-	500
Mounting Type	-	Free Hanging (In-Line)
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Specifications	Jack, 2.92 Jack	Jack, 2.92 Jack
Style	-	Straight
Type	Specialized	Specialized

PRECISION 2.92 CALIBRATION ADAPT

Part	Specifications	For Use With/Related Products	Type	Accessory Type	Convert From (Adapter End)	Convert From (Adapter End)	Style	Operating Temperature [Max]	Operating Temperature [Min]	Adapter Type	Mounting Type	Center Gender	Frequency - Max [Max]	Adapter Series	Center Contact Material	Center Contact Plating	Dielectric Material	Mating Cycles	Impedance	Body Material	Convert To (Adapter End)	Convert To (Adapter End)	Conversion Type
Rosenberger 02K121-K20S3	2.92 Jack, Jack	Network Analyzer	Specialized	Calibration Adapter
Rosenberger 02K121-K00S3					2.92 mm	Jack, Female Socket, OS-2.9	Straight	85 °C	-40 °C	Jack to Jack	Free Hanging (In-Line)	Female to Female	40 GHz	RPC-2.92 to RPC-2.92	Beryllium Copper	Gold	Polystyrene (PS)	500	50 Ohms	Stainless Steel	2.92 mm	OS-2.9 Jack, Female Socket	Same Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 1112.68

General part information

Specialized Calibration Adapter for use with Network Analyzer
