953302-1

Active

TE Connectivity AMP Connectors

18W MQS STRAIGHT HEADER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

18W MQS STRAIGHT HEADER

Technical Specifications

Parameters and characteristics for this part

Specification	953302-1

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Guide Pin
Insulation Color	Black
Insulation Height [z]	20.3 mm
Insulation Height [z]	0.799 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Termination	Solder
Voltage Rating	12 V

18W MQS STRAIGHT HEADER

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Contact Type	Termination	Contact Material	Connector Type	Contact Length - Post	Contact Length - Post	Fastening Type	Pitch - Mating	Pitch - Mating	Number of Positions	Insulation Material	Features	Insulation Color	Voltage Rating	Insulation Height [z]	Insulation Height [z]	Material Flammability Rating	Contact Finish - Post	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Number of Rows	Shrouding
TE Connectivity AMP Connectors 953302-1	2.54 mm	0.1 in	All	Male Pin	Solder	Copper Alloy	Header	3.5 mm	0.138 in	Push-Pull	0.1 in	2.54 mm	18	Polybutylene Terephthalate (PBT), Glass Filled	Guide Pin	Black	12 V	20.3 mm	0.799 in	UL94 V-0	Tin	Panel Mount, Right Angle, Through Hole	85 °C	-40 °C	Circular	2	Shrouded - 4 Wall

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

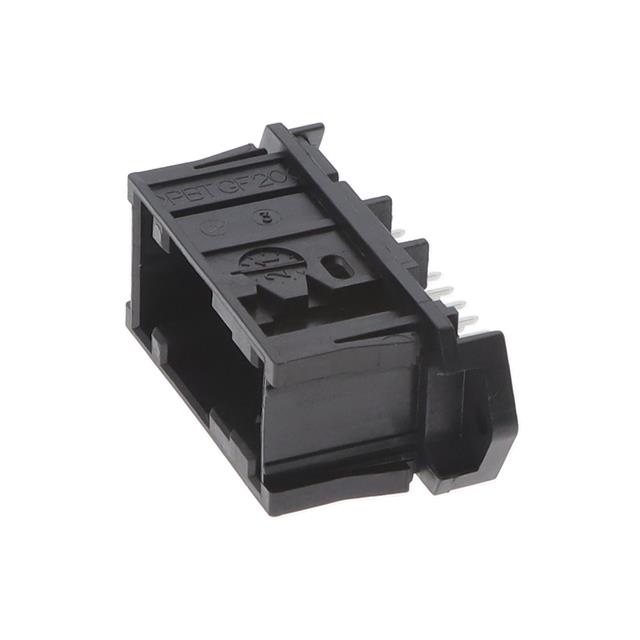

Connector Header Panel Mount, Through Hole, Right Angle 18 position 0.100" (2.54mm)
